Those outdoors energy/power equipments are running normally every days

Regardless of the type of new energy equipment, various components are installed inside to operate, and each component requires safe conditions (appropriate temperature inside the cabinet) to function properly

If an accidental open flame occurs inside the BESS cabinet, it may leaks various possible flammable gases such as hydrogen or methane, the fire will intensify

As the combustible gas fire becomes increasingly uncontrollable, the internal temperature keeps rising, the pressure keeps pushing outwards, and finally becomes an uncontrollable explosion scene. The fire will affect dozens of battery cabinets around it, and the losses are incalculable

We can reduce the maximum loss!!

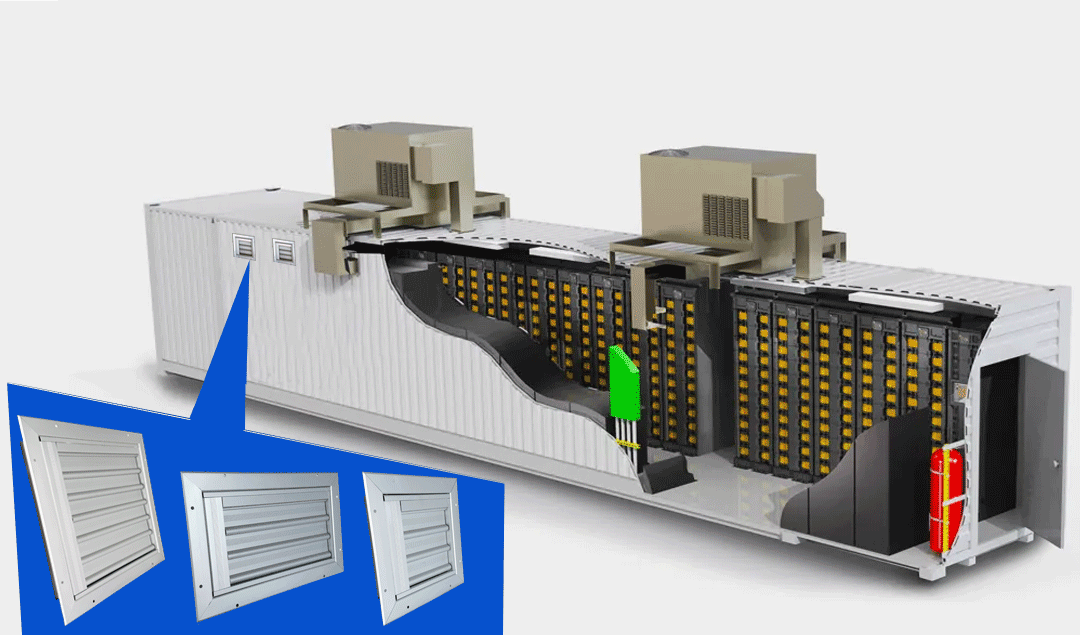

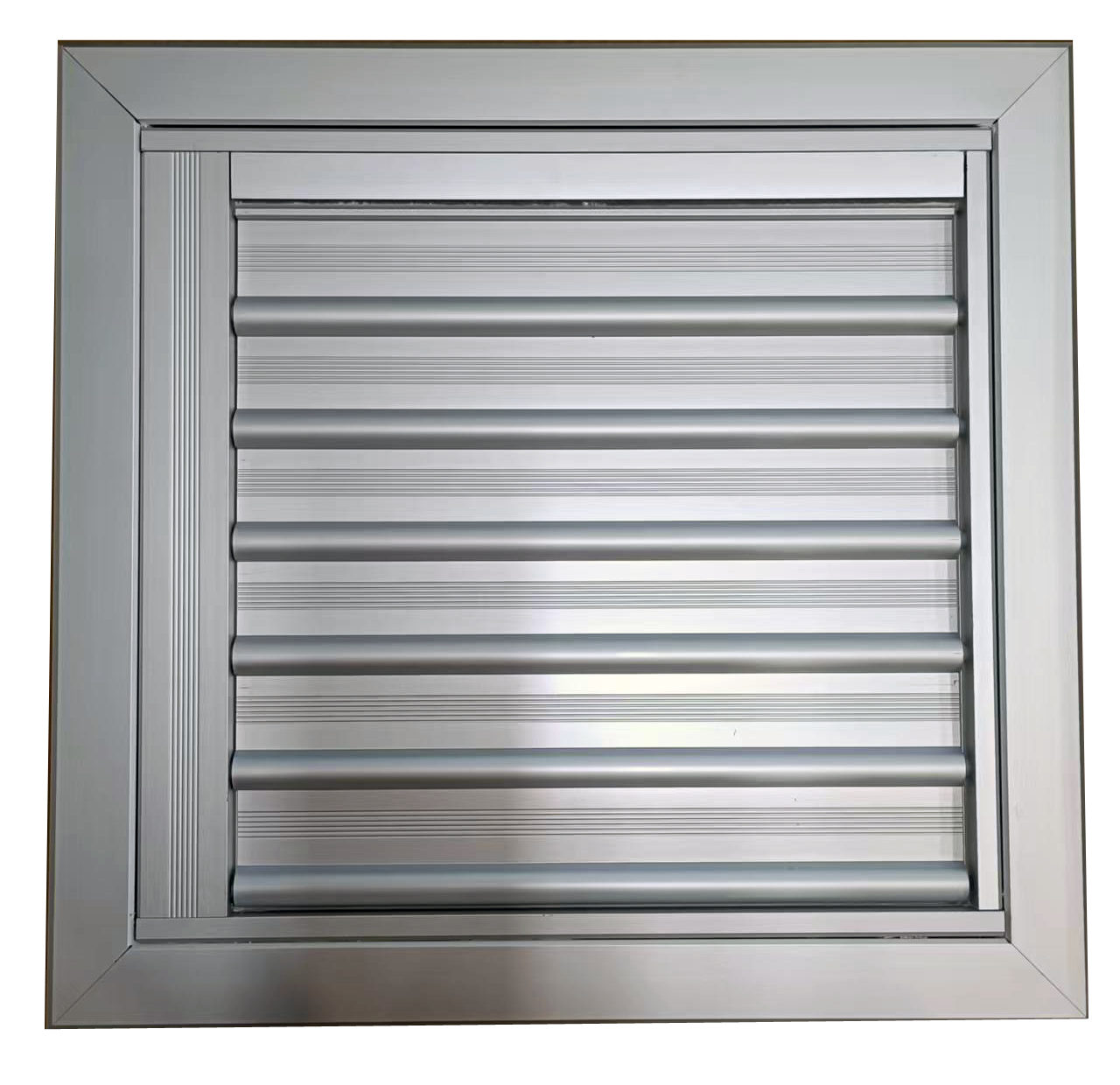

Explosive proof pressure relief louver/shutter, Explosion safety louver for All type Container enclosure，all type energy/power container equipment


Ventilation Heat dissipation	Smooth circulation of internal & external airflow	Balance the pressure in & outside of equipment	Waterproof dustproof

Product working principle

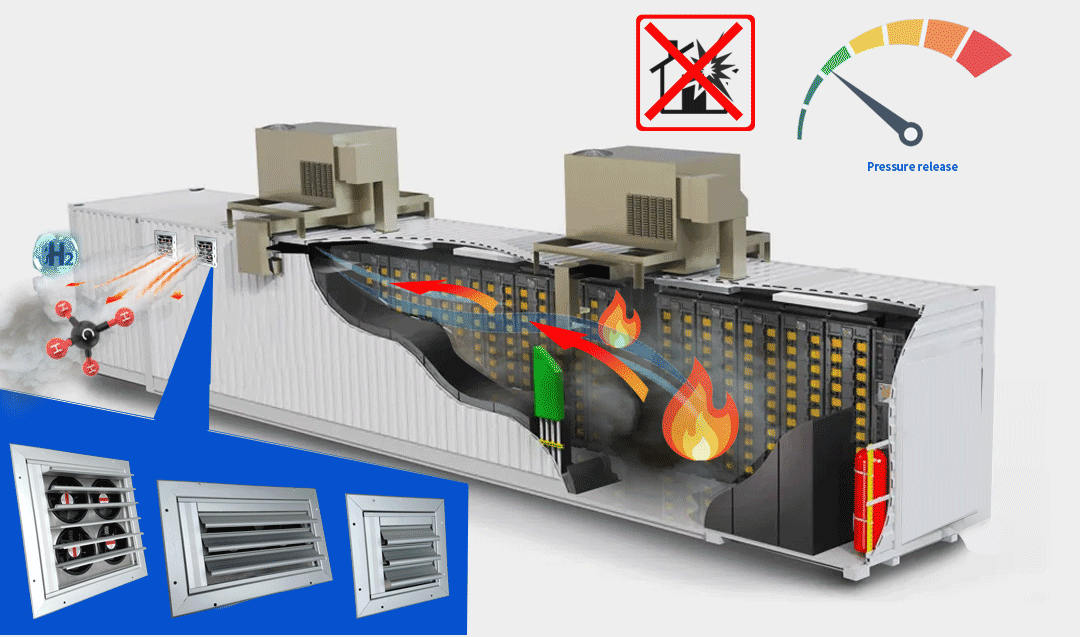

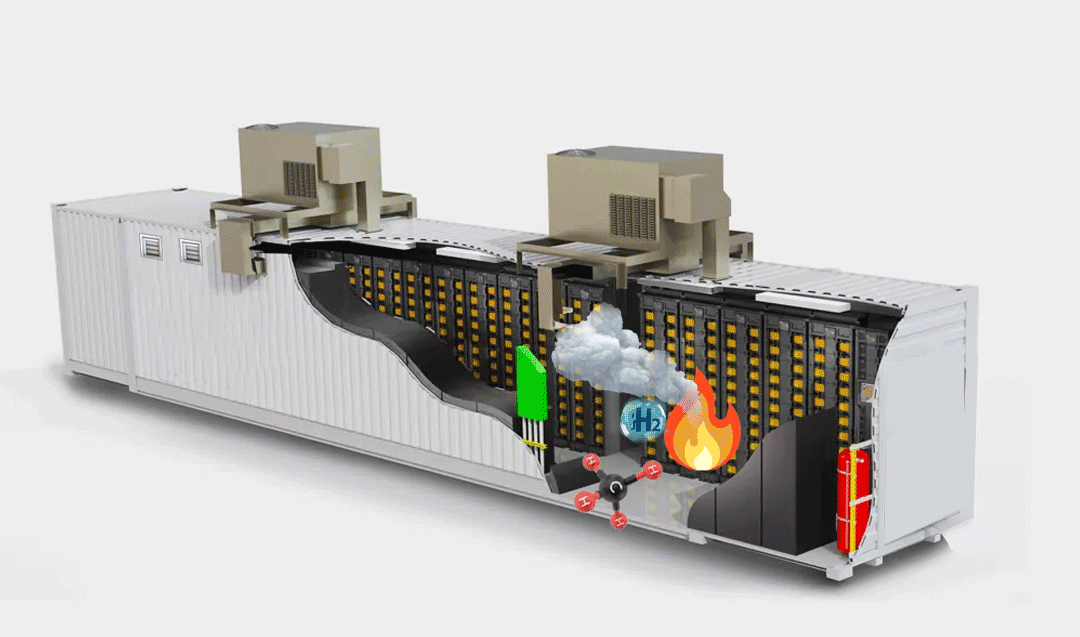

When an accident occurs inside an energy container, resulting in open flames and leakage of flammable gases

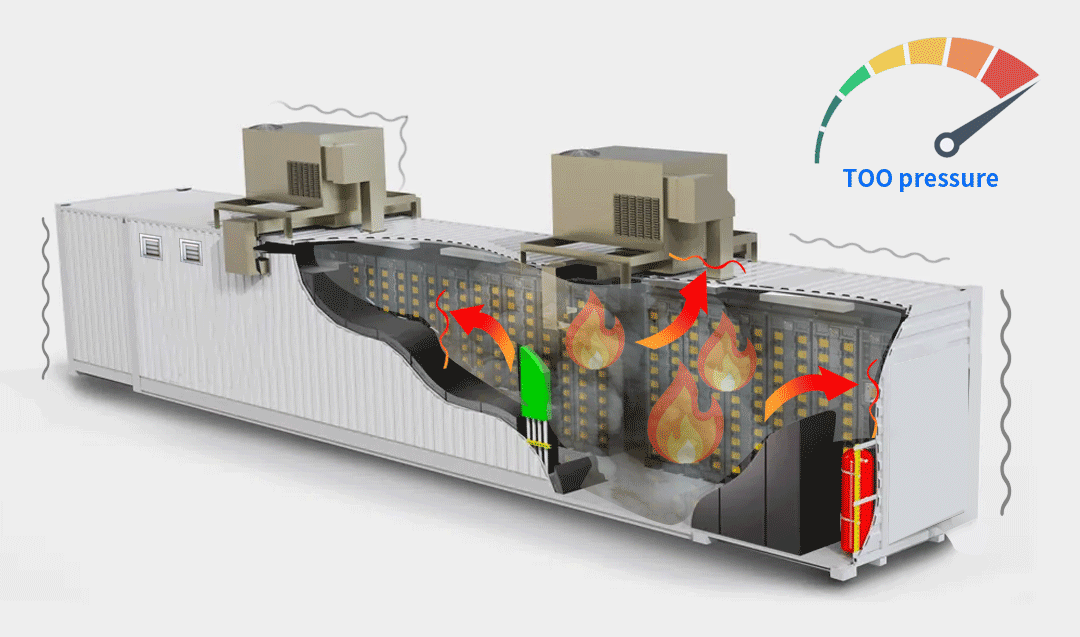

With the leakage of combustible gases, the fire is becoming increasingly uncontrollable, the temperature inside the energy container continues to rise, and the thick smoke and expansion pressure increase, posing a risk of packaging occurring at any time

Equipped with our pressure relief shutterrs, they will automatically open according to the emergency situation you have set. Through the exhaust fan inside the structure, the combustible gases and thick smoke inside the energy container will be quickly expelled from the equipment. And it can reduce temperature and expansion pressure, avoiding the occurrence of equipment explosions

Product parameter

Material	Aluminum alloy
Surface treatment	Anodic odidation
Protection level	IP54-65 option (customized)
Explosion proof marking	Ex ec llC T4 Gc
Working temperature	-20°C ~ +85°C
Neutral salt spray test	C5-M (1440 hours)
Environmental protect certificate	ROHS 2.0
Applicable application	The exhausted vent of equipment

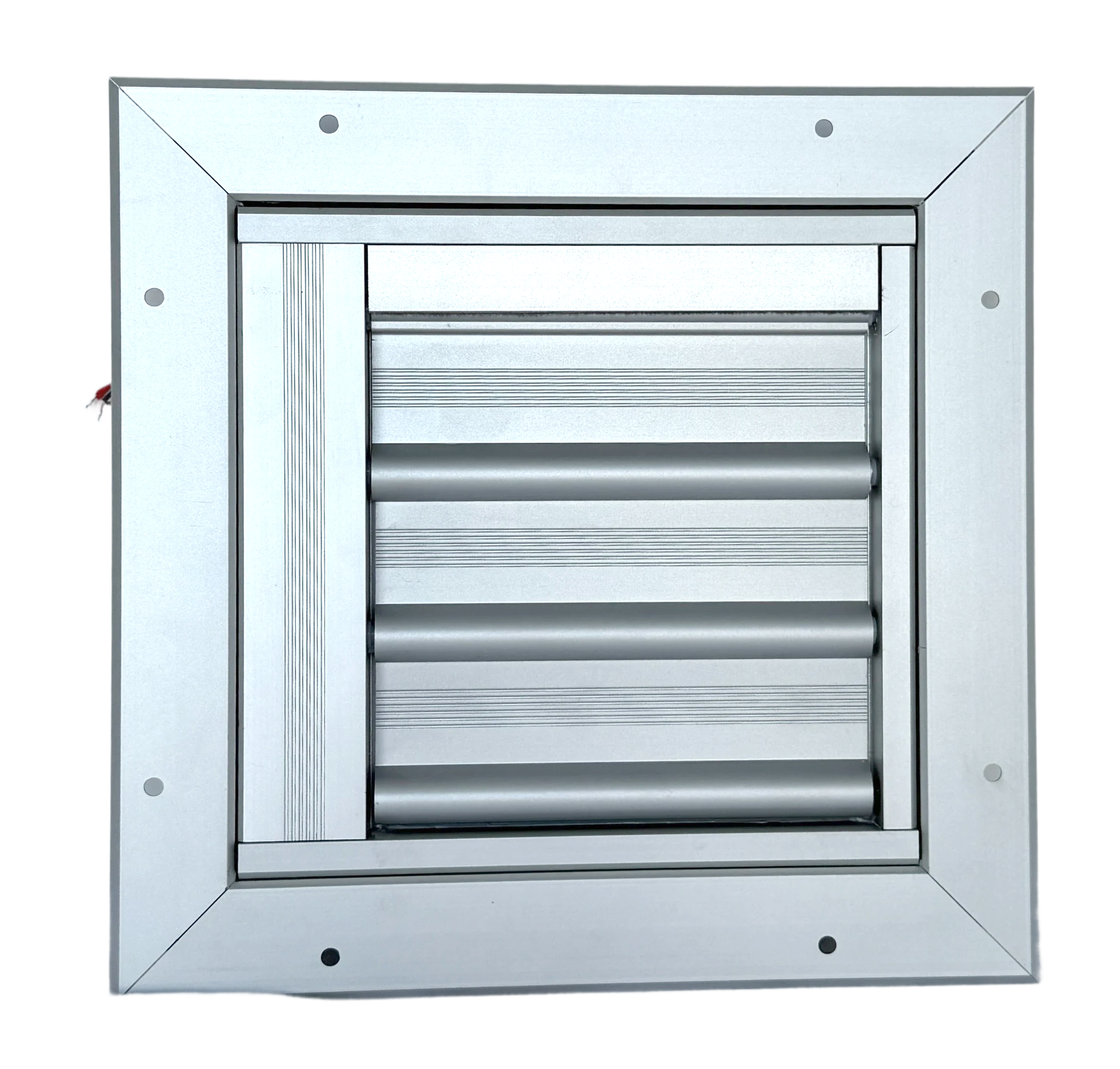

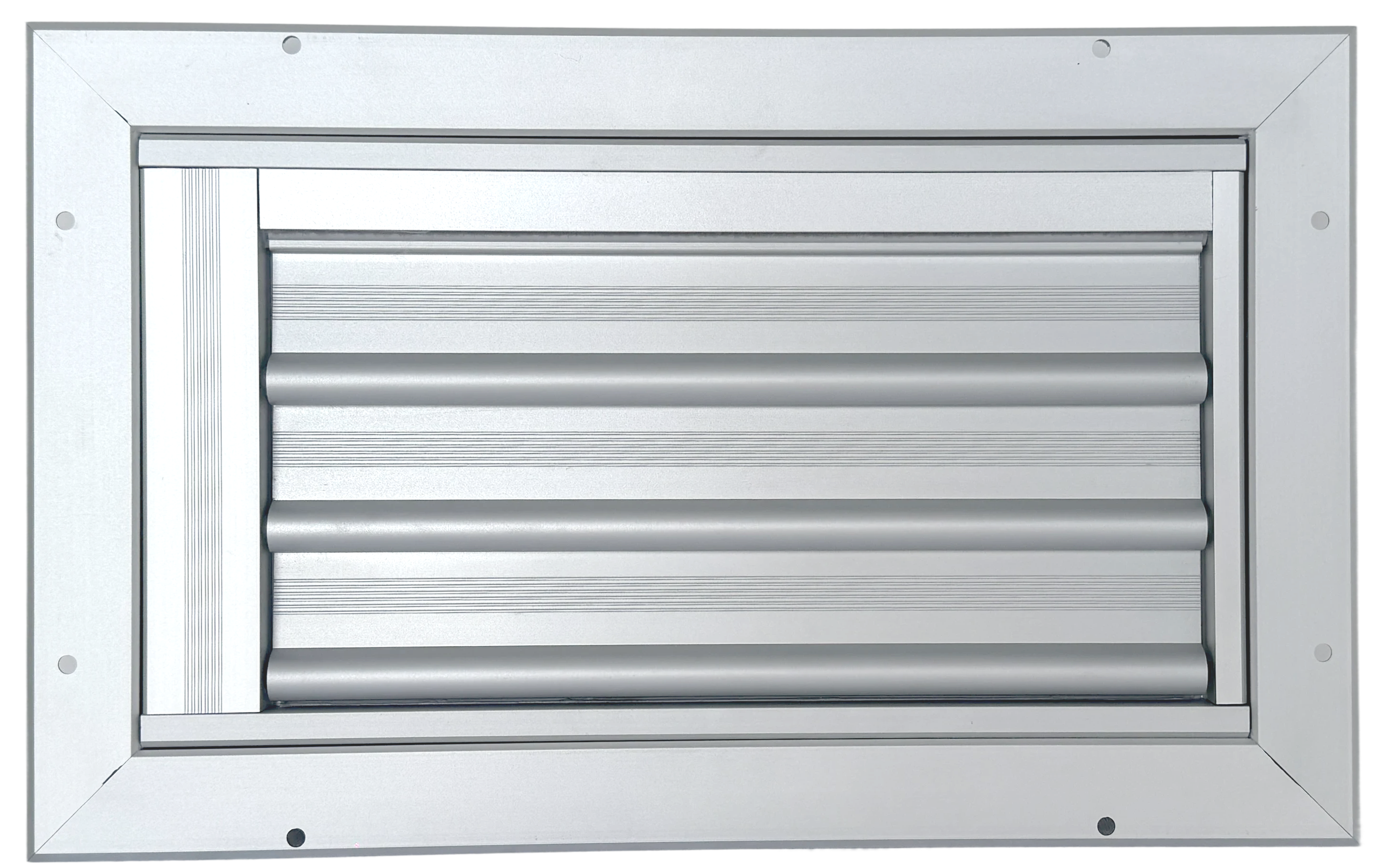

Model no.	Pictures	Exhaust wind area

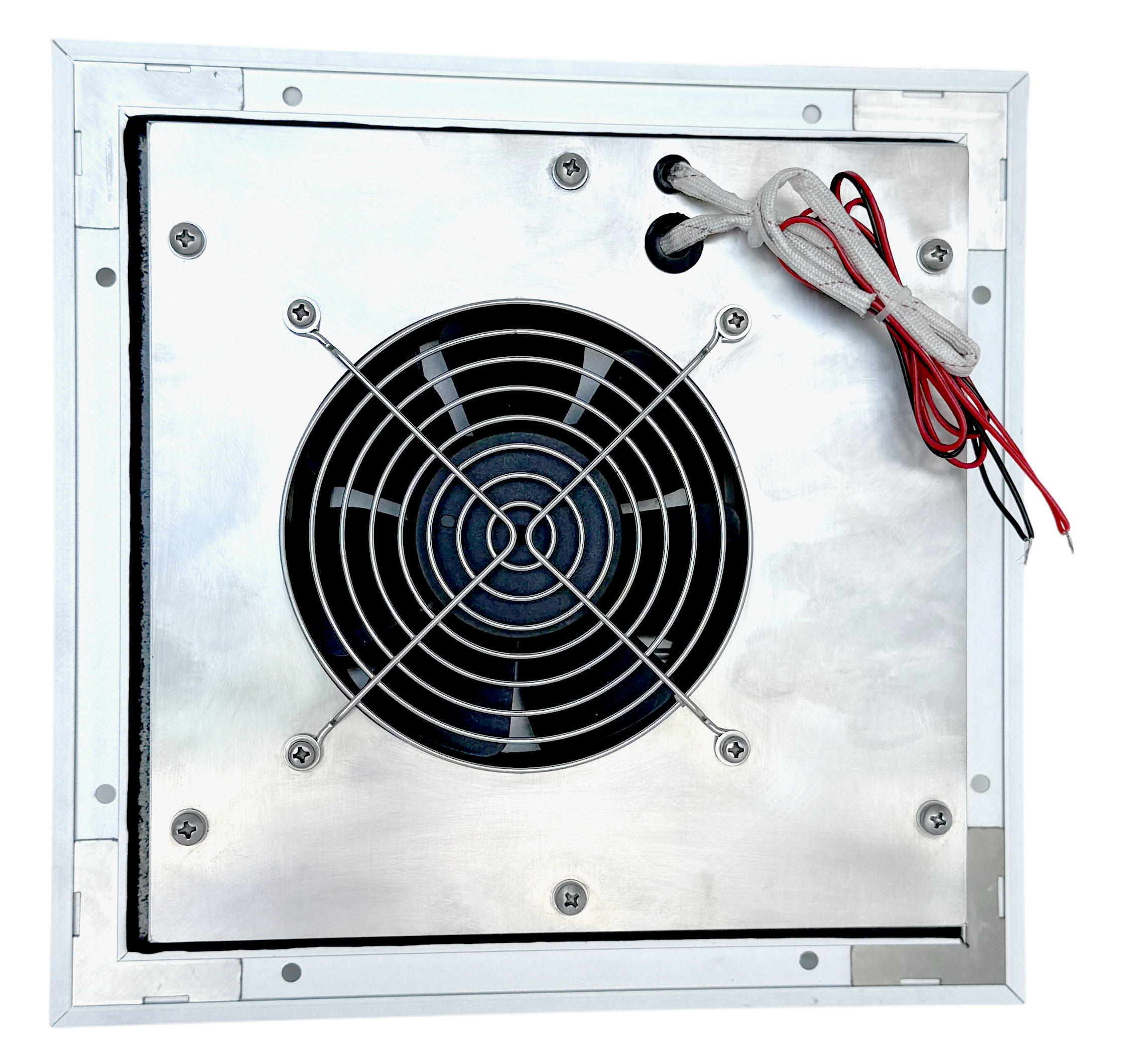

HX-FBC-1A		0.019㎡（open）
HX-FBC-2A		0.039㎡（open）

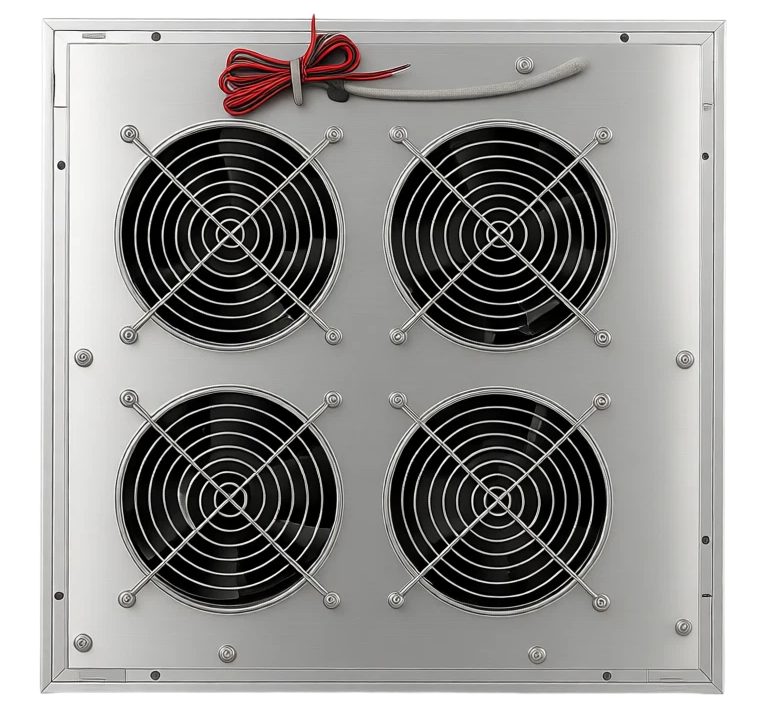

HX-FBC-4A		0.075㎡（open）

Accessory upgrade option


Electric + spring push rod ( original is electric push rod) When the electric promotion fails and the valve cannot be opened, the spring push rod can push the valve open due when the pressure enough inside the cabinet	+micro switch option Bind the sensor to detect if there is any foreign object pressing against the valve and it cannot be tightly closed	+ Insect barrier mesh option

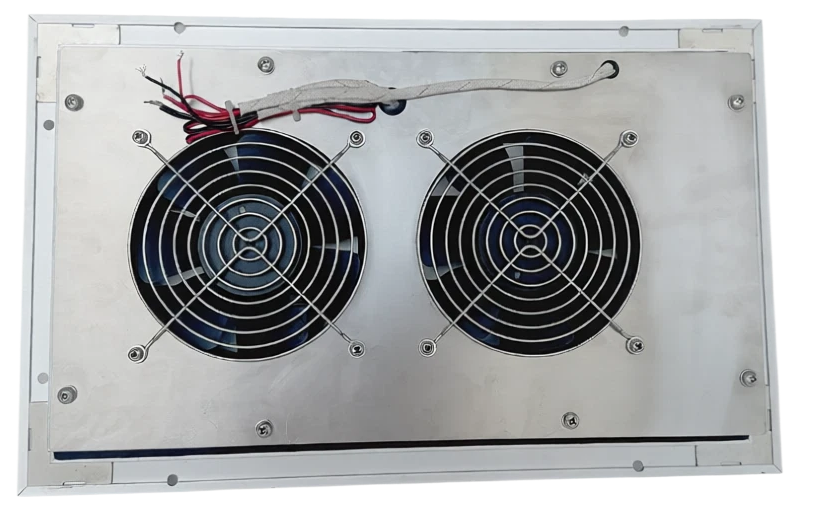

Original fan blower	Upgrade option: Explosion-proof fan blower （No static electricity）

Here is catalogue download

Detail of push rod and fan blower

and product testing videos are needed

Please contact us to obtain

We can customize explosion-proof product solutions for you

Product solution

Multi-combination
Multiple combinations of louvers or fan can be used according to your needs. Design your explosion-proof safety design based on your security system settings!
