Those outdoors energy/power equipments are running normally every days



Regardless of the type of new energy equipment, various components are installed inside to operate, and each component requires safe conditions (appropriate temperature inside the cabinet) to function properly





If an accidental open flame occurs inside the BESS cabinet, it may leaks various possible flammable gases such as hydrogen or methane, the fire will intensify



As the combustible gas fire becomes increasingly uncontrollable, the internal temperature keeps rising, the pressure keeps pushing outwards, and finally becomes an uncontrollable explosion scene. The fire will affect dozens of battery cabinets around it, and the losses are incalculable











We can reduce the maximum loss!!

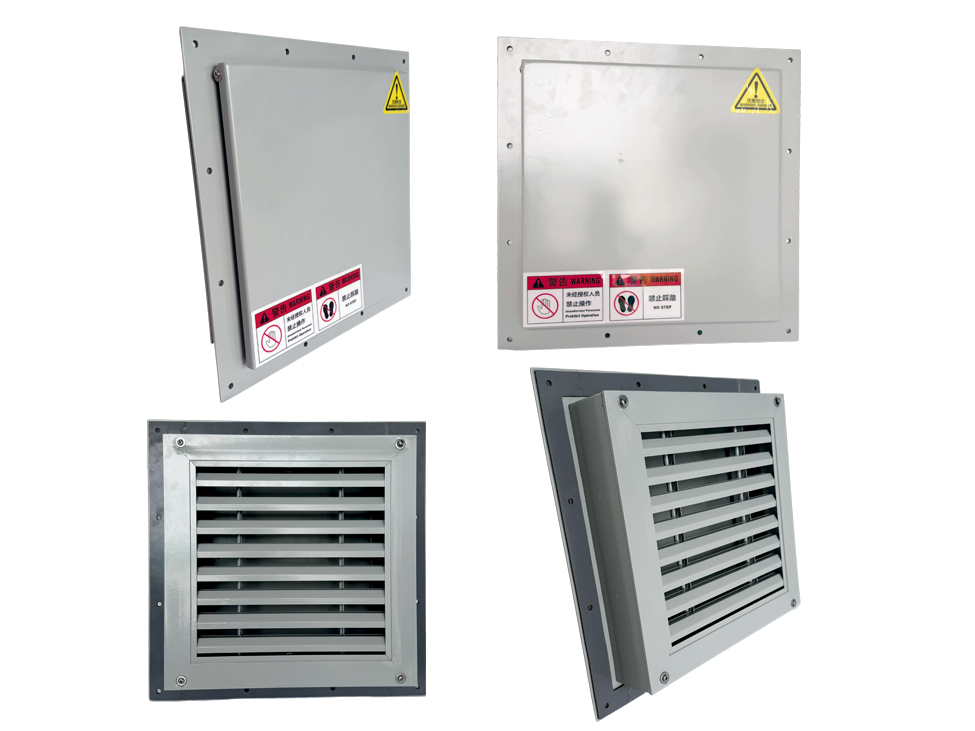

Explosive proof pressure relief shutter/ pressure safety louver





Explosive proof pressure relief board, Explosion safety plate for All type Container enclosure，all type energy/power container equipment



Constant pressure opening	Rapid pressure relief	Pressure relief & explosion-proof	Waterproof  dustproof







Product working principle

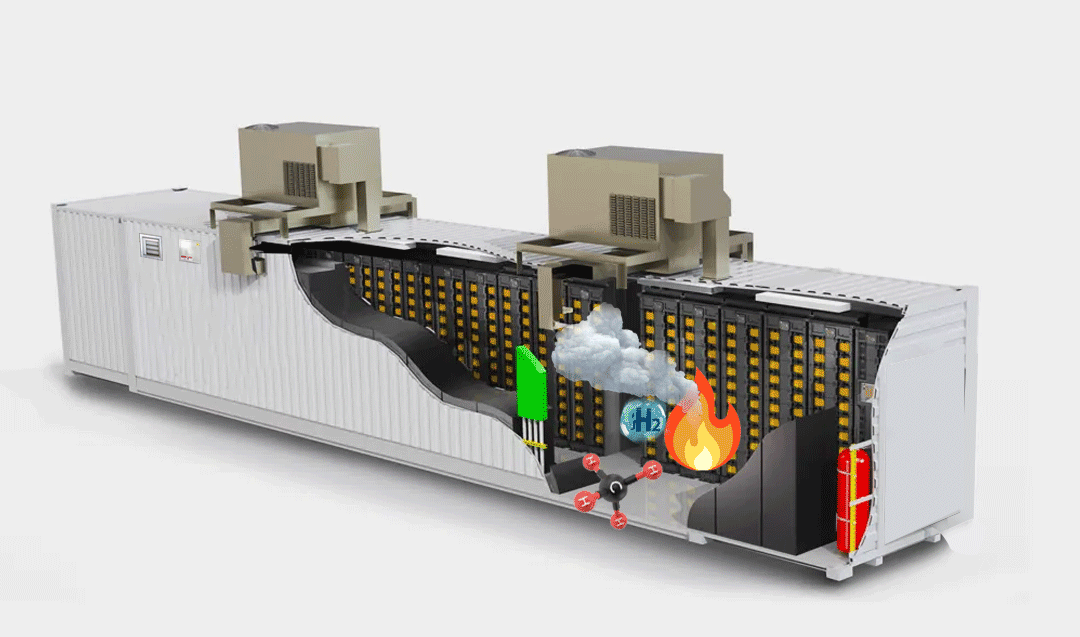

When an accident occurs inside an energy container, resulting in open flames and leakage of flammable gases





With the leakage of combustible gases, the fire is becoming increasingly uncontrollable, the temperature inside the energy container continues to rise,  if the safety system with power is not working , the thick smoke and expansion pressure increase, posing a risk of packaging occurring at any time.

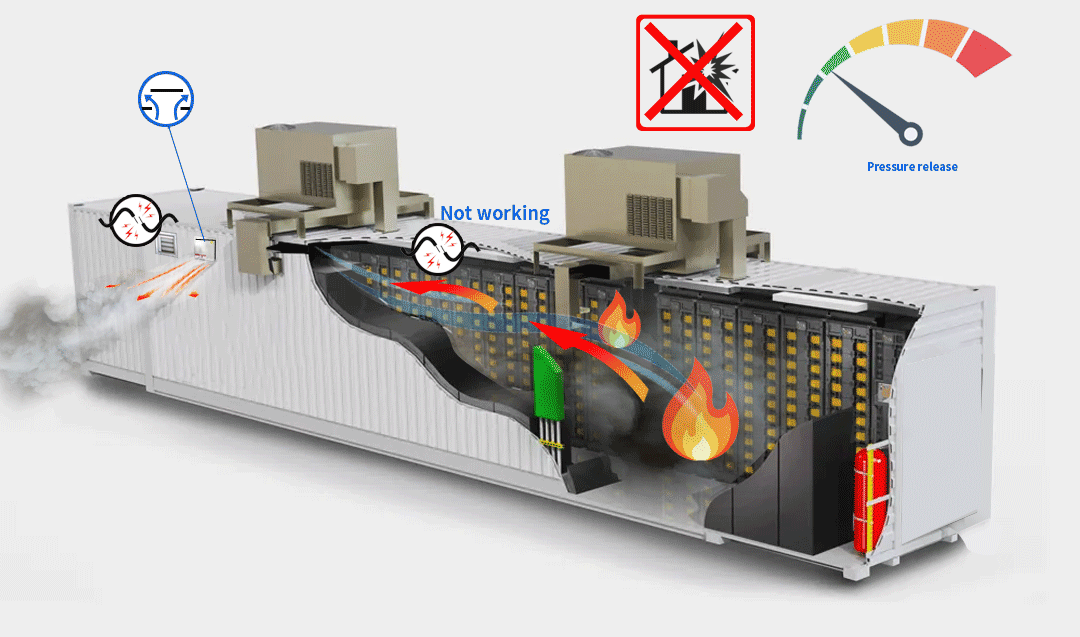

Equipped with our pressure relief board is the last ace , it will mechanically open when is over critical pressure point inside the energy container. the combustible gases and thick smoke inside the energy container will be quickly expelled from the equipment. And it can reduce temperature and expansion pressure, avoiding the occurrence of equipment explosions



       Product parameter



Material	cold-rolled steel sheet
Surface treatment	Custom color
Protection level	IP66
Max preesure relief area	0.048㎡
Hydraulic surface opening pressure	0.05~0.15Kpa
Explosion proof marking	Ex ec llC T4 Gc
Working temperature	-40°C ~ +85°C
Neutral salt spray test	C5-M
Environmental protect certificate	ROHS 2.0
Applicable application	The exhausted vent of equipment

Here is catalogue download

Detail of push rod and fan blower and product testing videos are needed Please contact us to obtain We can customize explosion-proof product solutions for you



Product solution





Multi-combination

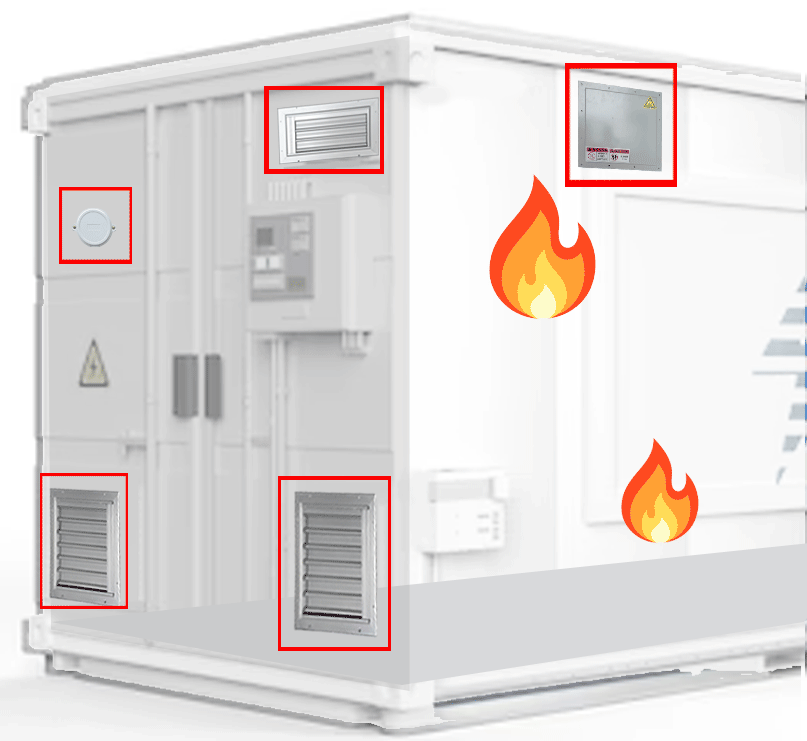

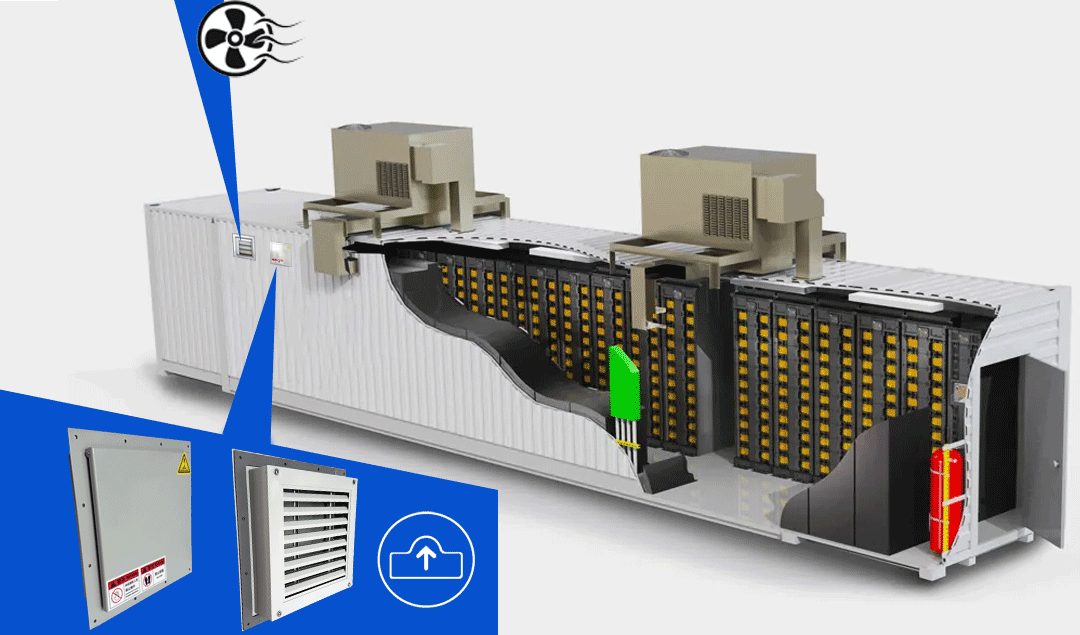

Multiple combinations of louvers or fan can be used according to your needs. Design your explosion-proof safety design based on your security system settings!
