Have you encountered any of the following issues with your enery equipment

DC electric vehicle charging station

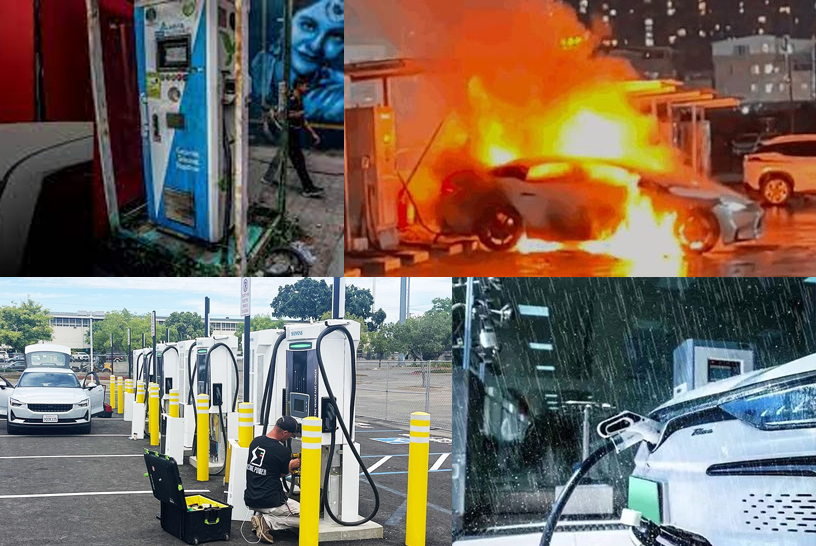

The airflow of rainstorm take into the no protection equipment, resulting in ponding damage and power failure of the cabinet.  it brings the high maintenance costs. Moisture condensation cause discharge orcorrosion to the machine

Those power equipment will face those harsh condition influence below
Rainstorm	Sand storm
Plague of insects	Moisture foggy

The Challenges of Natural Disasters

Natural disasters pose significant threats to outdoor energy storage and electrical equipment. Typhoons, for instance, can cause widespread damage to infrastructure, with high winds and flyi ng debris damaging protective enclosures and exposing sensitive components to water ingress. Eart hquakes, on the other hand, can shift foundations,  disrupting electrical connections and causing physical damage to devices. Prolonged rainfall and flooding can lead to water intrusion, posing the risk of electrical shorts, fires, and accelerated corrosion. Sandstorms, common in arid regions, can abrade protective coatings, infiltrate enclosures,  and deposit fine particles that impair ventilation systems and cause overheating

The equipment is facing the trouble of being damaged and difficult to repair at any time

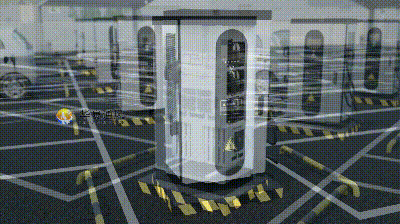

EV charging station needs the air cooling circulation

Air circulation consists of an outlet and inlet.when air passes over or through the vent . The vacuum this creates pulls stale, heat out of the enclosure and then fresh, ambient air is pulled through the inlet vent completing the multiple, daily air exchanges  necessary to prevent moisture buildup and mitigate excessive heat for EVSE

Choose the protection level and ventilation ratio you need

Theorem: The higher the protection level comes the low ventilation ratio

We can solve these problems

Product number: HX02S-IT40AB, Product thickness 40mm

Protection level: IP55-IP65, ventilation ratio 45%

      Dust prevention in ventilation

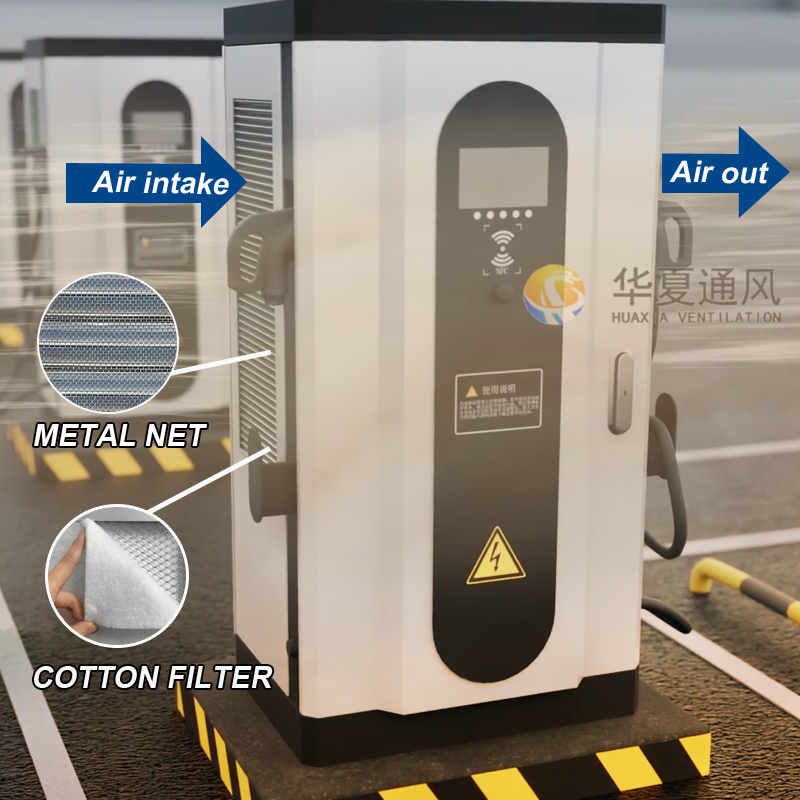

Quality dust proof and insects blocked performance by the metal net with cotton filter

Selection of fixed or removable type barrier net

Selection of disposable or reusable filter cotton materials

We have selection of IP5X or IP6X

      Waterproof and drainage

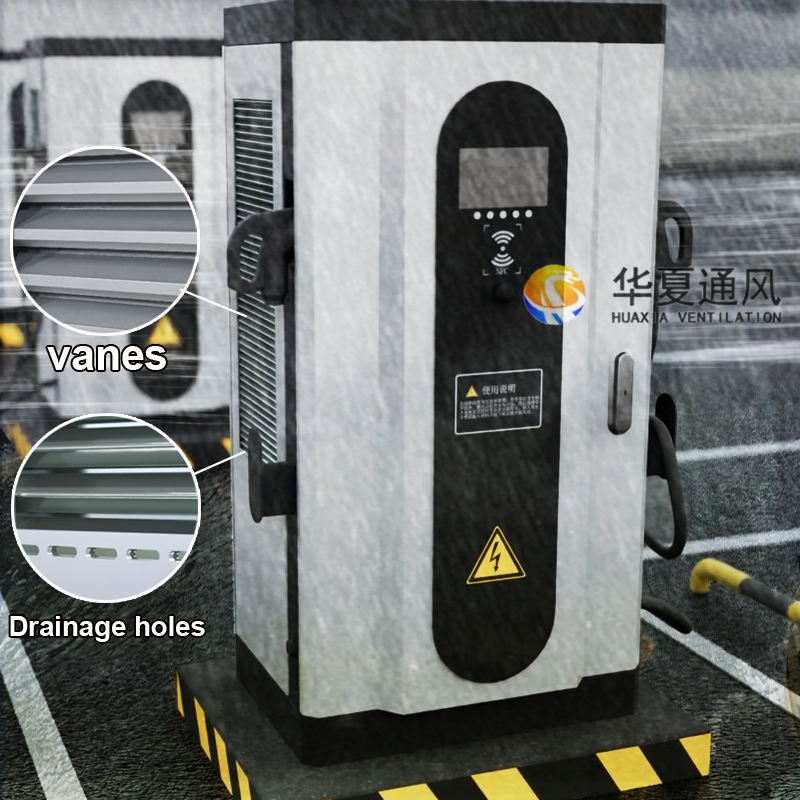

Rainstorm waterproof performance by the IPX5 vanes design and waist shaped drainage holes

Flange back integrated sealing rubber	Waist shape drainage holes in below

          2 Presentation methods and installation method

Show the frame style		Hidden the frame style

Back installation view	Step 1: Weld the screws on the enclosure of inside the cabinet first according to our CAD design file provide	Step 2: Mount the louver on the enclousure by screw nuts fixing

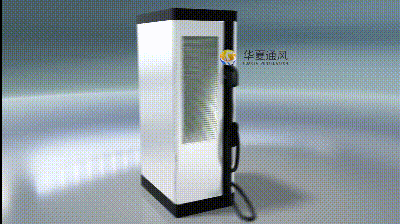

Also we can design the fan blower louver according to your fan size for the exhausted vent

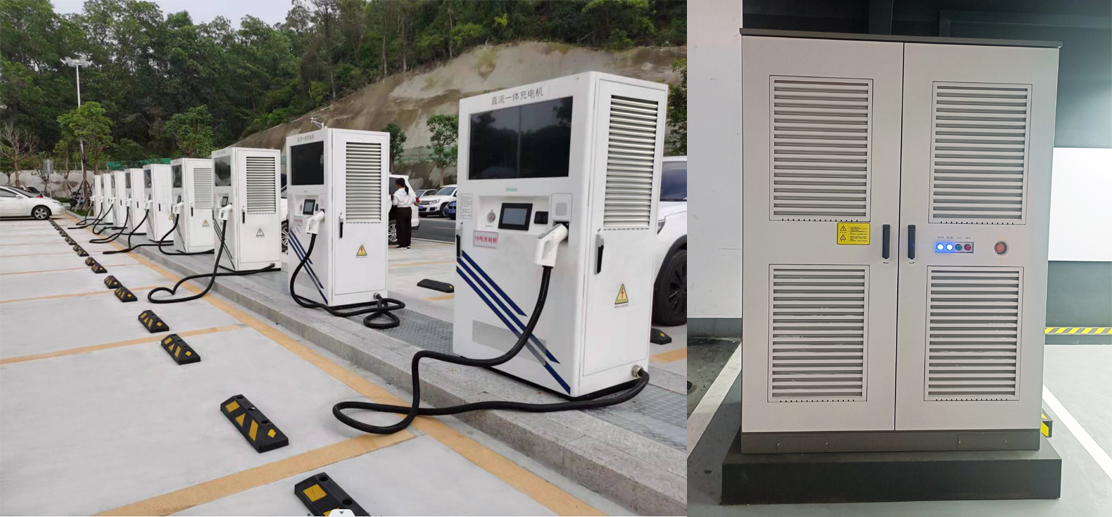

Application- DC EV charing pile & Split type charging cabinet

There are more other protection level louvers for differenct application

click to see more ↓↓↓

      How to serve you:

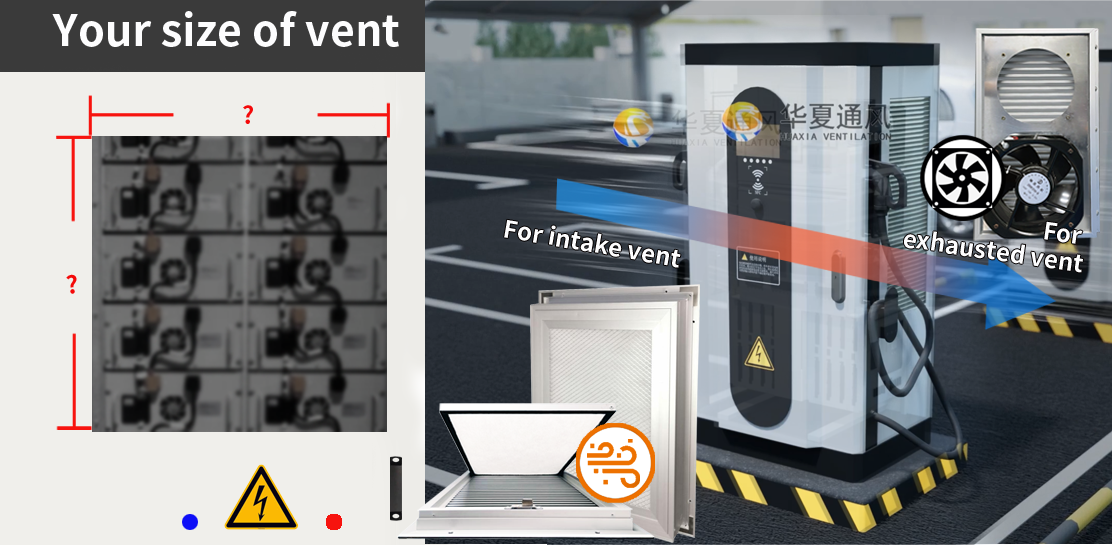

The key is your vent size of intake or exhausted, and your requirement. we can customized ↓↓↓

Or click here to download the document to remark your requirement   (please click)

Leave your comment about your ventilation idea or question we might discuss the answer together (click)

)
