IP53/IP63 ventilation ratio 60% thin filter louver

HX11Z-IT30


Classification:

EV charging equipment (click)

Category: IT Series
Main Material: Aluminum Alloy
Color: Natural Anodizing
Blade Space(mm): 17
Flange Width(mm): 20
Thickness of Filter net(mm): 12
Total Thickness(mm):32
Protection Grade: IP54
Effective ventilationrate:40%

Key word:

Integrated outlet filter louver

air outake

ventilation

heat dissipation

IP53

protective louver

Product Details









 Have you encountered any of the following issues with your enery equipment

DC electric vehicle charging station





The airflow of rainstorm take into the no protection equipment, resulting in ponding damage and power failure of the cabinet.  it brings the high maintenance costs. Moisture condensation cause discharge orcorrosion to the machine



Those power equipment will face those harsh condition influence below
Rainstorm Sand storm
Plague of insects Moisture foggy

The Challenges of Natural Disasters

Natural disasters pose significant threats to outdoor energy storage and electrical equipment. Typhoons, for instance, can cause widespread damage to infrastructure, with high winds and flyi ng debris damaging protective enclosures and exposing sensitive components to water ingress. Eart hquakes, on the other hand, can shift foundations,  disrupting electrical connections and causing physical damage to devices. Prolonged rainfall and flooding can lead to water intrusion, posing the risk of electrical shorts, fires, and accelerated corrosion. Sandstorms, common in arid regions, can abrade protective coatings, infiltrate enclosures,  and deposit fine particles that impair ventilation systems and cause overheating



The equipment is facing the trouble of being damaged and difficult to repair at any time

EV charging station needs the air cooling circulation

Air circulation consists of an outlet and inlet.when air passes over or through the vent . The vacuum this creates pulls stale, heat out of the enclosure and then fresh, ambient air is pulled through the inlet vent completing the multiple, daily air exchanges  necessary to prevent moisture buildup and mitigate excessive heat for EVSE



Choose the protection level and ventilation ratio you need

Theorem: The higher the protection level comes the low ventilation ratio







We can solve these problems



Product number: HX11Z-IT30AB, Product thickness 30/40mm

Protection level: IP53-IP63, ventilation ratio 60%





      Dust prevention in ventilation

Quality dust proof and insects blocked performance by the metal net with cotton filter



Selection of fixed or removable type barrier net

Selection of disposable or reusable filter cotton materials

We have selection of IP5X or IP6X



      Waterproof and drainage

moderate rain proof performance by the IPX3 vanes design and waist shaped drainage holes

Flange back integrated sealing rubber Waist shape drainage holes in below







          2 Presentation methods and installation method

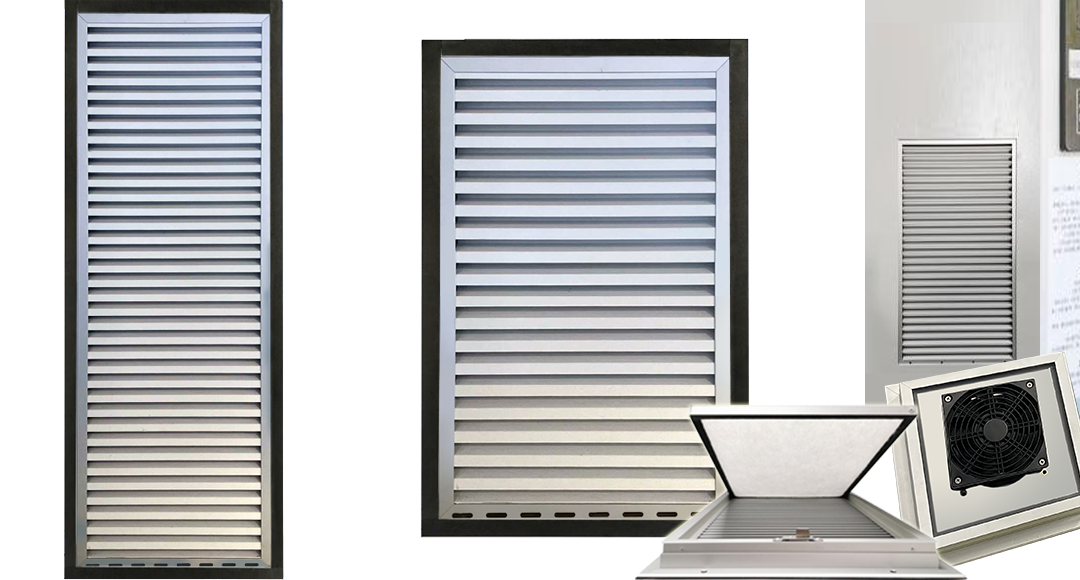

Show the frame style Hidden the frame style
Back installation view Step 1: Weld the screws on the enclosure of inside the cabinet first according to our diagram provide  Step 2: Mount the louver on the enclousure by screw nuts







Also we can design the fan blower louver according to your fan size for the exhausted vent

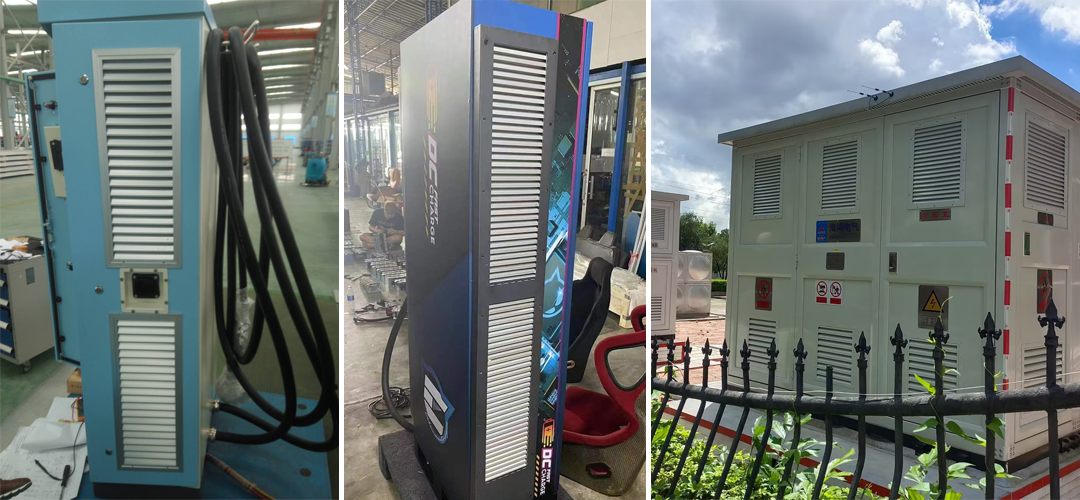

Client case reference- EV charger ,box type substation & split type charging cabinet
