Have you encountered any of the following issues with your project equipment

The Challenges of Natural Disasters

Natural disasters pose significant threats to outdoor energy storage and electrical equipment. Typhoons, for instance, can cause widespread damage to infrastructure, with high winds and flyi ng debris damaging protective enclosures and exp osing sensitive components to water ingress. Eart hquakes, on the other hand, can shift foundations,  disrupting electrical connections and causing physical damage to devices.

Prolonged rainfall and flooding can lead to water intrusion, posing the risk of electrical shorts, fires, and accelerated corrosion. Sandstorms, common in arid regions, can abrade protective coatings, infiltrate enclosures,  and deposit fine particles that impair ventilation systems and cause overheating

Rainstorm	Sand storm
Plague of insects	Moisture foggy

The equipment is facing the trouble of being damaged and difficult to repair at any time

A electric contribution includes multi processor devices like transformer, box type substation, switch gear and HV / LV cabinets, it constantly generates numbers mw of energy, accompanied by the high temperature risk generated by its operation, that would not be more risk to those machines if keep the good ventilation system.

We can solve these problems

Option 1: Model No. HX02S-IT40AB

Product number: HX02S-IT40AB, Product thickness 40mm

Protection level: IP55-IP65, ventilation ratio 45%

Option 2: Model No. HX1M-IT30/40AB

Product number: HX1M-IT30AB, Product thickness 30/40mm

Protection level: IP54-IP64, ventilation ratio 35%

        Waterproof and drainage  performance

Rainstorm waterproof performance by the IPX5 vanes design and waist shaped drainage holes

Flange back integrated sealing rubber	Waist shape drainage holes in below

     Dust prevention in ventilation

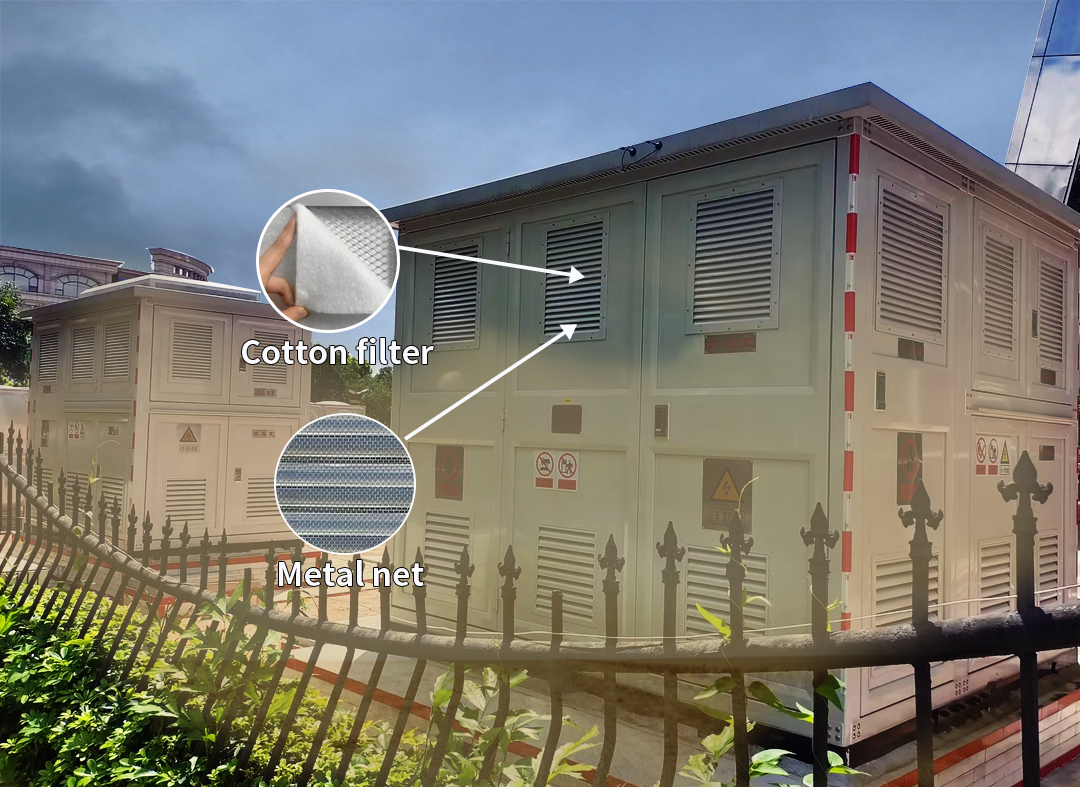

Quality dust proof and insects blocked performance by the metal net with cotton filter

Selection of fixed or removable type barrier net

Selection of disposable or reusable filter cotton materials

We have selection of IP5X or IP6X

Also for outlet vent, design the fan blower louver according to your fan size

          2 Presentation methods and installation method

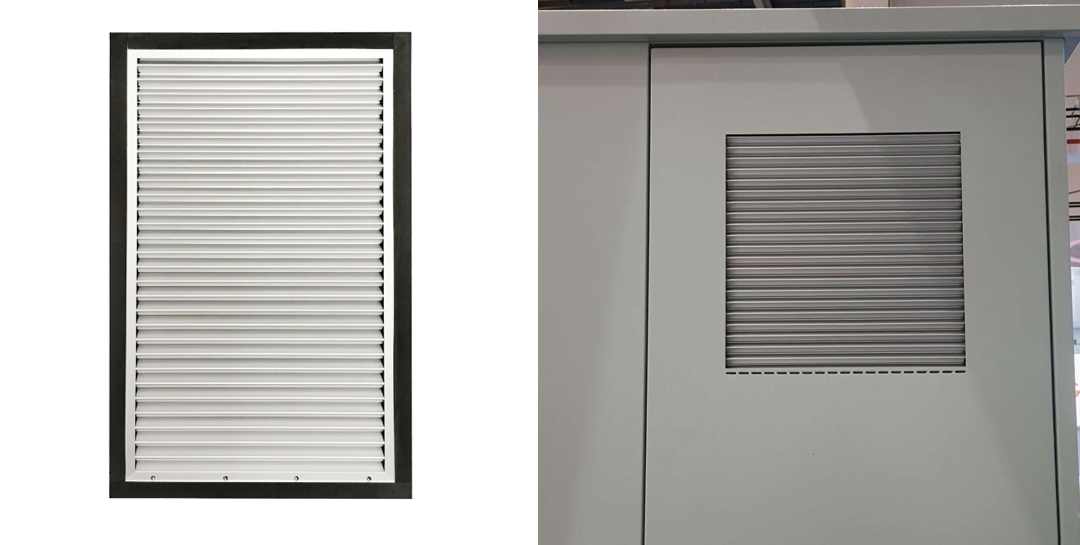

Show the frame style		Hidden the frame style

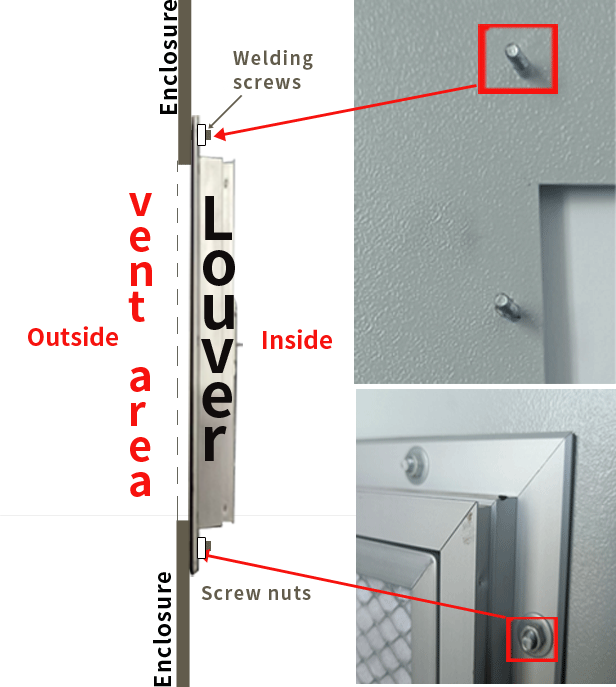

Back installlation view	Step 1: weld the screws on the enclosure of inside the cabinet first according to our CAD design file provide	Step 2: Mount the louver on the enclousure by screw nuts

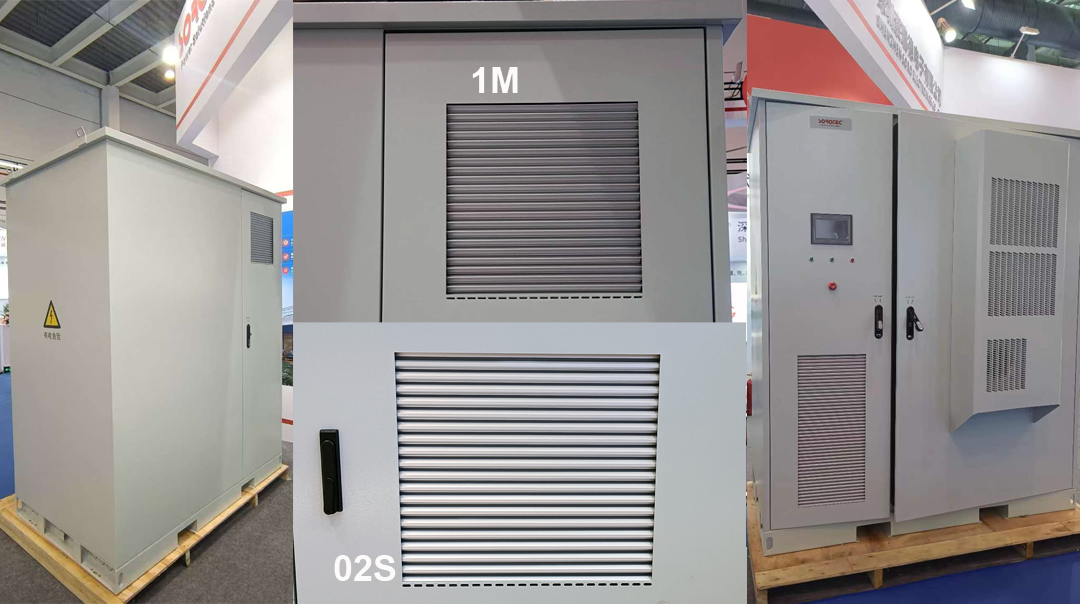

Client case reference:

There are more other protection level louvers for differenct application

click to see more

      How to serve you:

The key is your vent size of intake or exhausted, and your requirement, we can customized

Or click here to download the fill form about your requirement   (please click)

Leave your comment about your ventilation idea or question we might discuss the answer together (click)
