IP53-IP63, Ventilation ratio 60% louver with dust filter
1Z seires
Classification:
Container & cabinet enclosure (click)
CHP/ hydrogen genset (click)
Key word:
vent
rainproof
ventilationer louver
air filter
shipping container
ventilation lourve
Product Details
Have you encountered any of the following issues with your project equipment |
![]() |

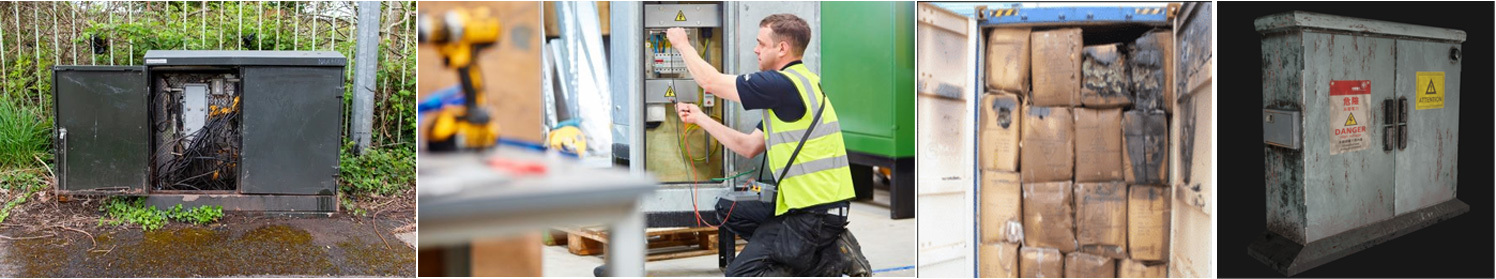

Outdoor containers and cabinets devices always face those natural disasters | |
![]() |
![]() |
Rainstorm | Sand storm |
![]() |
![]() |
Plague of insects | Moisture foggy |
The Challenges of Natural Disasters
Natural disasters pose significant threats to outdoor energy storage and electrical equipment. Typhoons, for instance, can cause widespread damage to infrastructure, with high winds and flyi ng debris damaging protective enclosures and exp osing sensitive components to water ingress. Eart hquakes, on the other hand, can shift foundations, disrupting electrical connections and causing physical damage to devices. Prolonged rainfall and flooding can lead to water intrusion, posing the risk of electrical shorts, fires, and accelerated corrosion. Sandstorms, common in arid regions, can abrade protective coatings, infiltrate enclosures, and deposit fine particles that impair ventilation systems and cause overheating
The equipment is facing the trouble of being damaged and difficult to repair at any time
The airflow of rainstorm take into the no protection equipment, resulting in ponding damage and power failure of the cabinet. it brings the high maintenance costs. Moisture condensation cause discharge orcorrosion to the machine
Shipping container and cabinet enclosure needs the air cooling circulation
Air circulation consists of an outlet and inlet.when air passes over or through the vent . The vacuum this creates pulls stale, heat and moist air out of the enclosure and then fresh, ambient air is pulled through the inlet vent completing the multiple, daily air exchanges necessary to prevent moisture buildup and mitigate excessive heat for shipping container. Those shipping containers use for power storage or power generator needs the serious ventilation system for heat dissipation,
one ESS container includes multi processor devices like battery system, liquid cooling system,switch gear and conversion system, it constantly generates numbers kmw of energy, accompanied by the high temperature risk generated by its operation, that would not be more risk to those machines if keep the good ventilation system
We can solve these problems

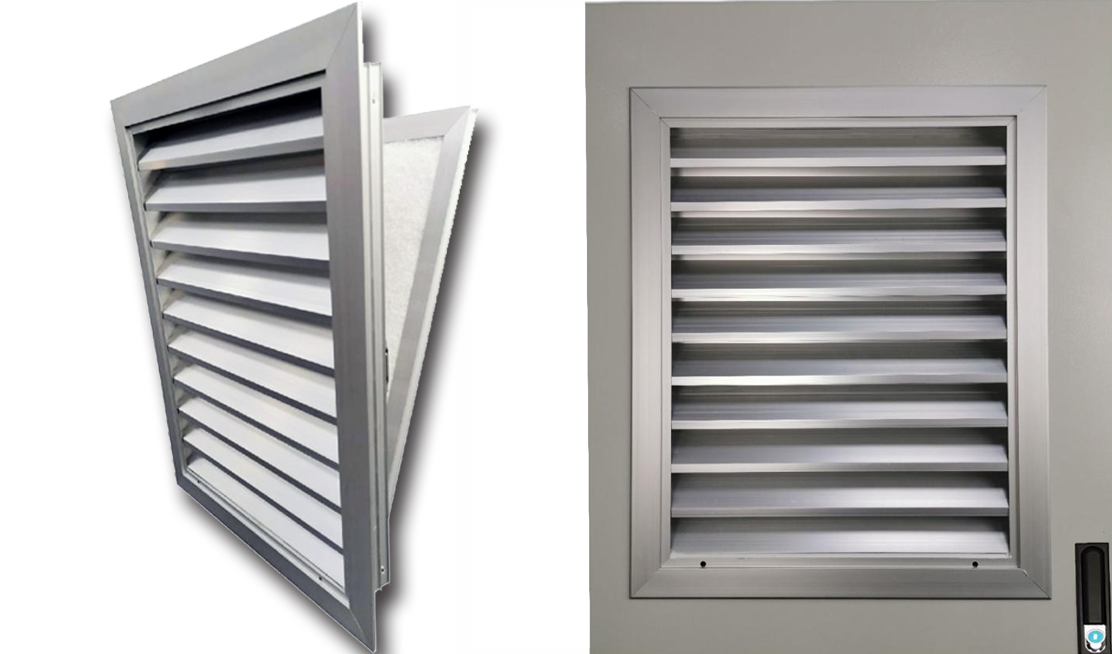

IPX3 ventilation ratio 60% Z shaped type louver
Basic version fixied type louver
Upgrade version opened type louver

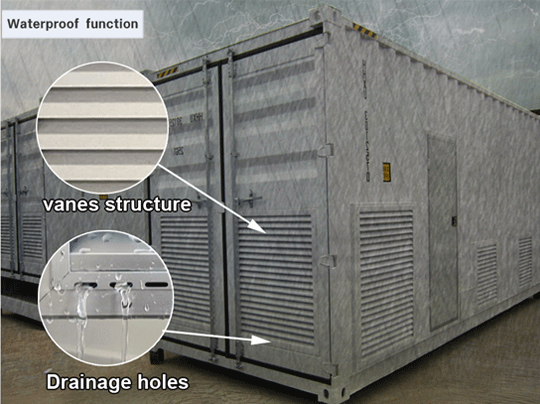

Waterproof and drainage performance
Good rainproof performance by the IPX3 vanes design and waist shaped drainage holes
![]() |
![]() |
Flange back integrated sealing rubber | Drainage holes in below |

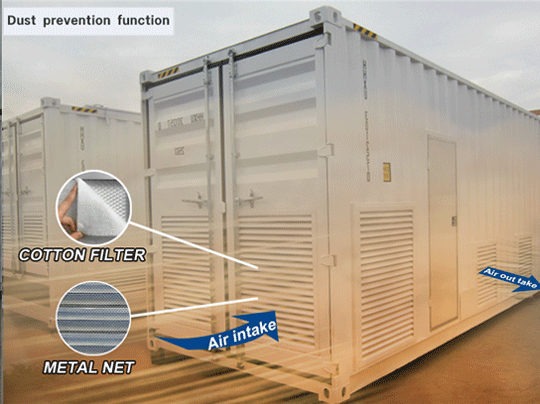

Dust prevention in ventilation
The louver can be paired with cotton filter and insect net integration
Selection of fixed or removable type barrier net
Selection of disposable or reusable filter cotton materials
We have selection of IP5X or IP6X

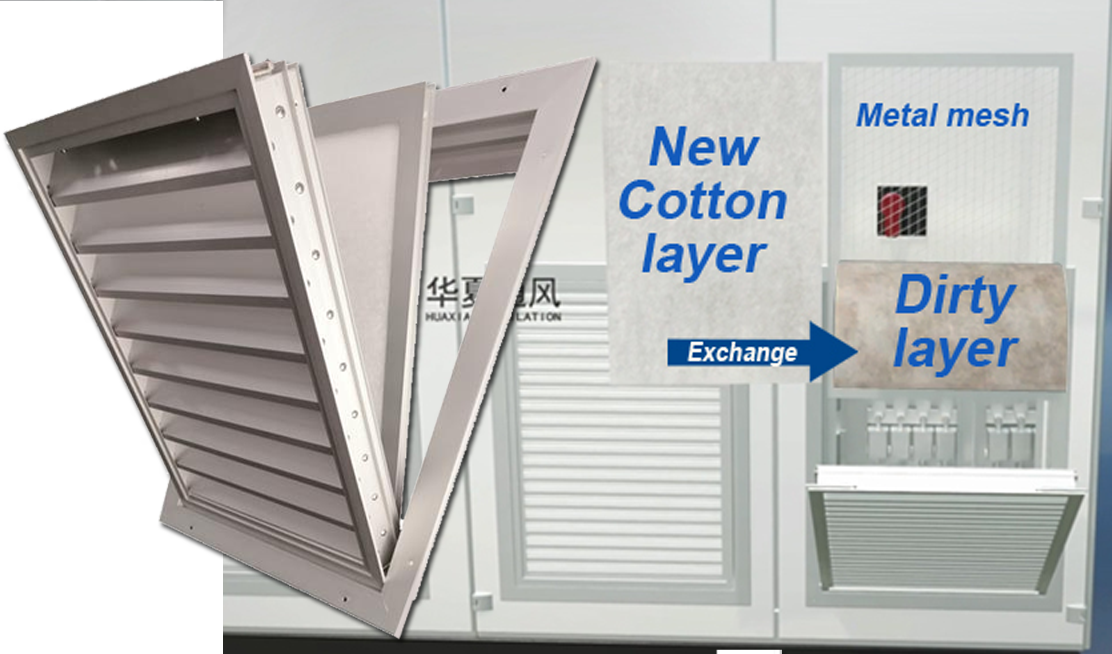

2 version louvers you can choose for maintenance method
![]() |
![]() |
Version 1: Fixed type louver , only way get in the enclosure for change the filter | Version 2: Upgrade type, direct open the louver without open the enclosure |
Also for outlet vent, design the fan blower louver according to your fan size

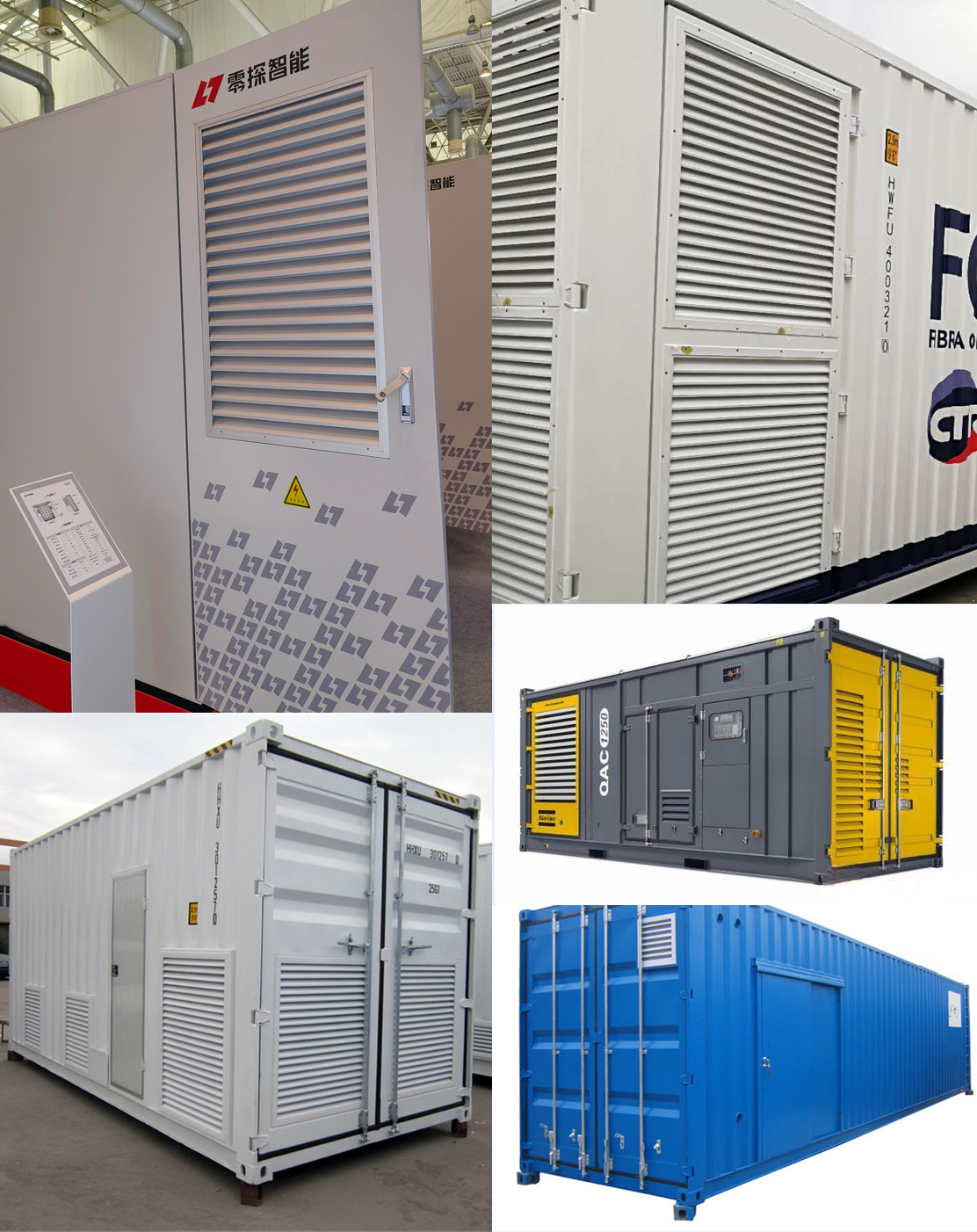

Client case reference
There are more other protection level louvers for differenct application
click to see more
How to serve you:
The key is your vent size of inlet or outlet, and your requirement, we can customized
Or click here to download the fill form about your requirement (please click)
![]() |
|
