Only dust cotton filter screen ( no louvers)

HXLW-T12-CC


Classification:

CHP/ hydrogen genset (click)

Container & cabinet enclosure (click)

Power distribution (click)

EV charging equipment (click)

The dust filter assembly is designed with an installation base to form an integrated filter assembly
The dust filter can be quickly inserted into the base and fixed by the buckle At the same time, without any toolsthe dust filter can be quickly removed by directly opening the buckle for cleaning or replacing the filter cotton
The dust filter assembly can be directly installed on the back of the shutter or the back of the cabinet door panelNo need to install any structural parts, applied to the air intake with dust proof requirements

Key word:

The buckle design dust filter net

Product Details

WHAT PROBLEMS ARE WE FOCUSING ON RESEARCH AND DEVELOPMENT AND SOLVING ?





 Have you encountered any of the following issues with your project equipment

Whole room is dusty, serious accumulation of dust inside the electrical equipment accelerate the aging and life span of the equipment in advance

Also

The airflow of rainstorm take into the no protection equipment, resulting in ponding damage and power failure of the cabinet.  it brings the high maintenance costs. Moisture condensation cause discharge orcorrosion to the machine











Those power equipment will face those harsh condition influence below
Rainstorm Sand storm
Plague of insects Moisture foggy



The equipment is facing the trouble of being damaged and difficult to repair at any time





 Our product can solve these problems!!

https://omo-oss-image.thefastimg.com/portal-saas/new2022111111533362519/cms/image/switch-gear.png

Plate type dust filter Net

Customized filter function is suitable of protection in any harsh condition.

Polyurethane filter cotton/Non-woven fabric filter cotton

Cotton material
Polyurethane filter cotton
(Black color)

Non-woven fabric filter cotton

(White color)

25PPI .

35PPI.

45PPI.

50PPI.

60PPI

Primary level (G2,G3,G4)



Intermediate level(F5,F6)



The merit and demerit of these two type filter cotton

1 Polyurethane filter cotton(Black color), it can be washing and reuse, small wind resistance, but the filtering effect is ordinary, small amount of dust.

2 Non-woven fabric filter cotton(White color) good filtering effect, large amount of dust. But wind resistance is high, do not wash and reuse, the customer have to replace new one when the dust accumulates.

# Technical parameters #

Filter level Test wind speed(m/s) Rated wind(m3/h) Initial resistance (pa) Final resistance Clogging capacity(g/m2)
 G2 1.5 5400 18 250  400
 G3 1.5  5400  20  250 450
 G4 1.5 5400  25  250  520
F5 1.5  5400  30  450  500
 F6 1.5  5400  36  450  500
 F7 1.5  5400  42  450  500



       Product case demonstration

Front view  Back view

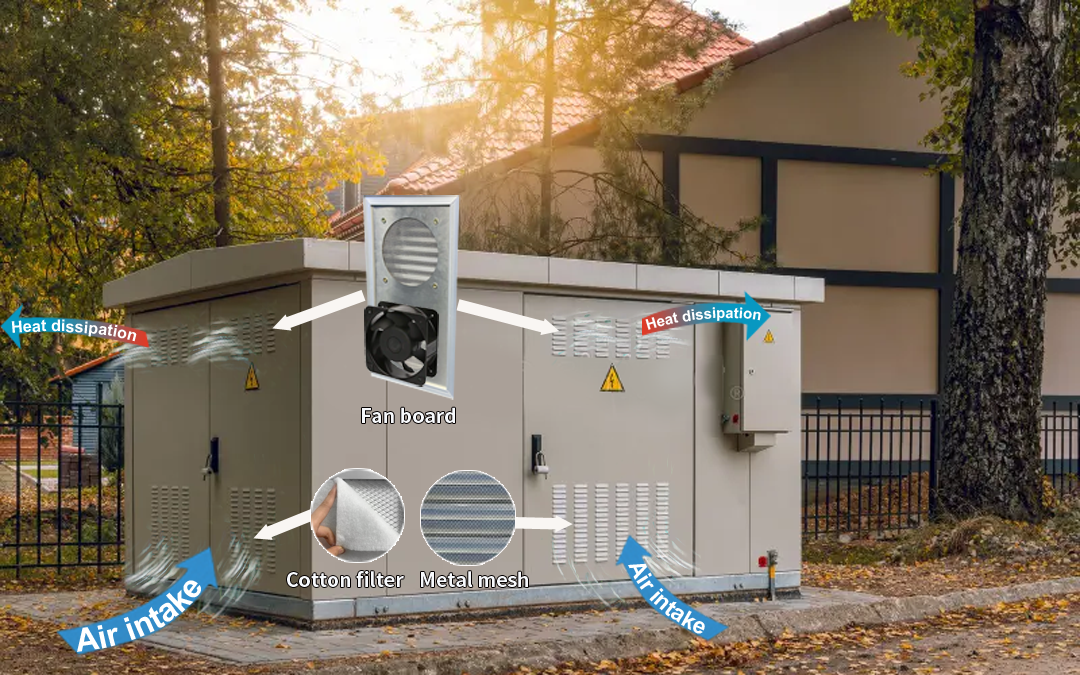

       Product working principle

https://omo-oss-image.thefastimg.com/portal-saas/new2022111111533362519/cms/image/electrical-enclosure.png

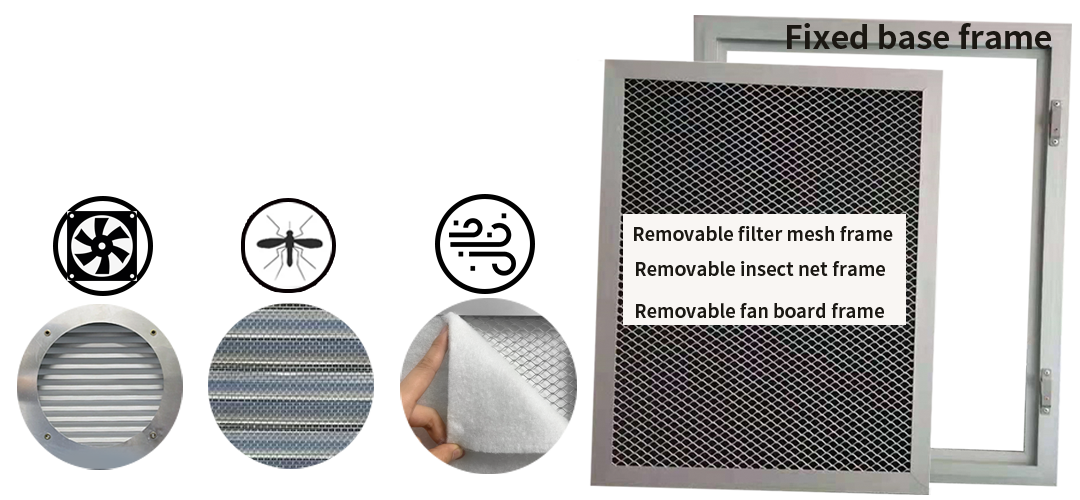

There are 3 option for the removable frame

option 1: cotton filter

Option 2: insect net

Option 3: Fan board



       Installation method

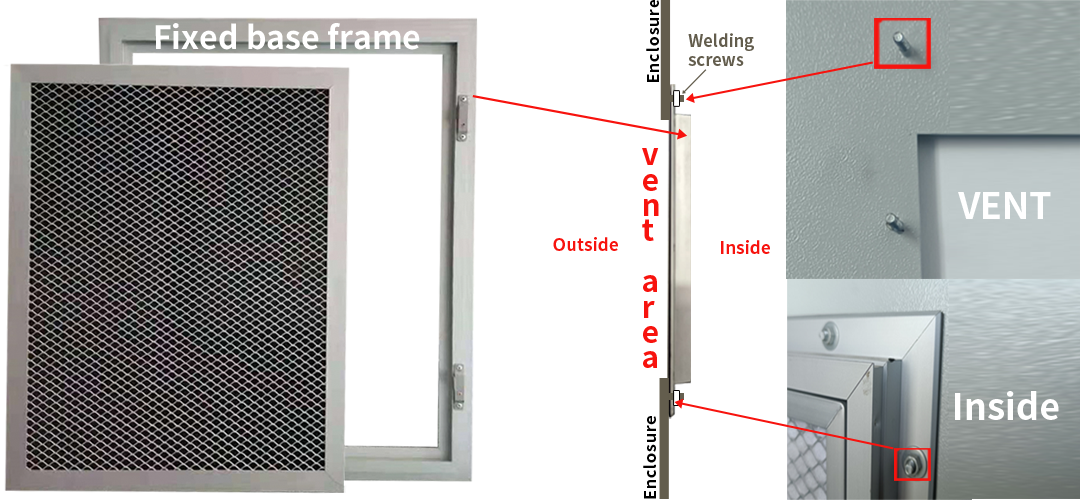

Weld the screws on the enclosure inside, fixed the base frame by screws



Good protective air cooling system by inlet and outlet hole

After few months or years

you can open the louver, take out the filter layer to flushing clean, and then install and use it again and again

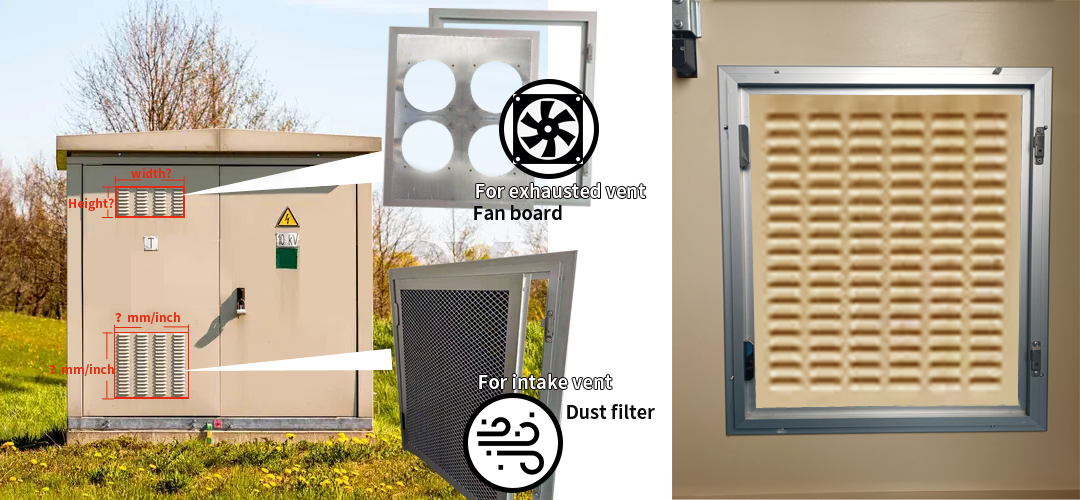

        Our product is suitable for those devices



er protection level louvers for differenct application

click to see more





      How to serve you:

The key is your vent size of inlet or outlet, and your requirement



Or click here to download the fill form about your requirement   (please click)







Leave your comment about your ventilation idea or question

we might discuss the answer together (click)



Follow our Linkedin to see more



Follow our facebook to see more
