New series products ↓↓↓

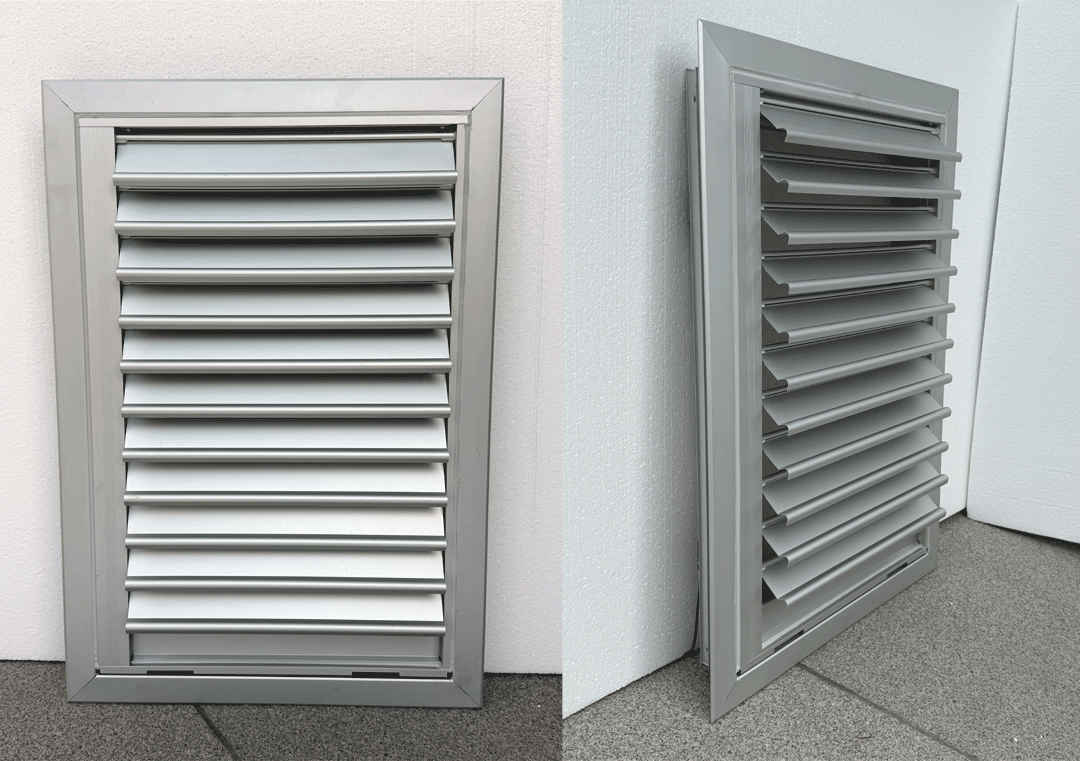

↑ Adjustable shutter/louver by power or manual ↑	↑ Explosion-proof pressure safety products ↑

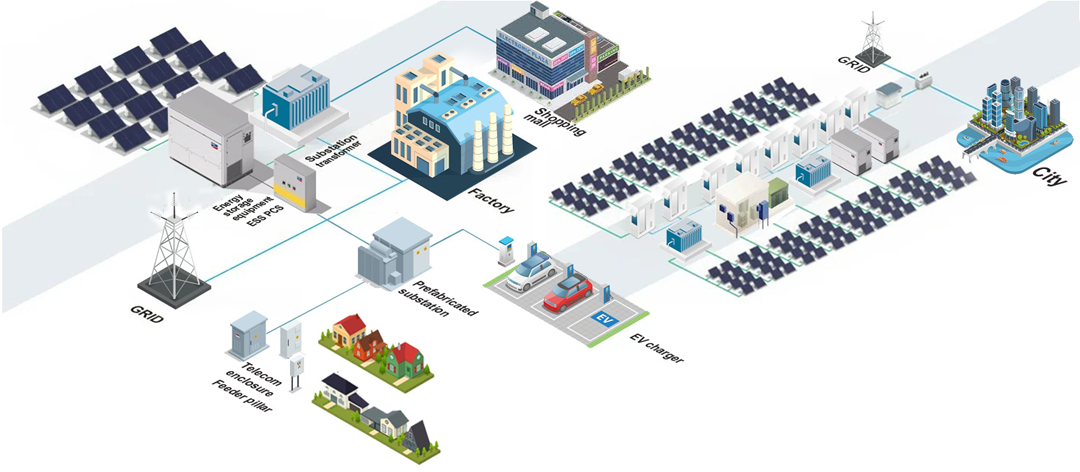

Those outdoors energy/power equipments are running normally every days

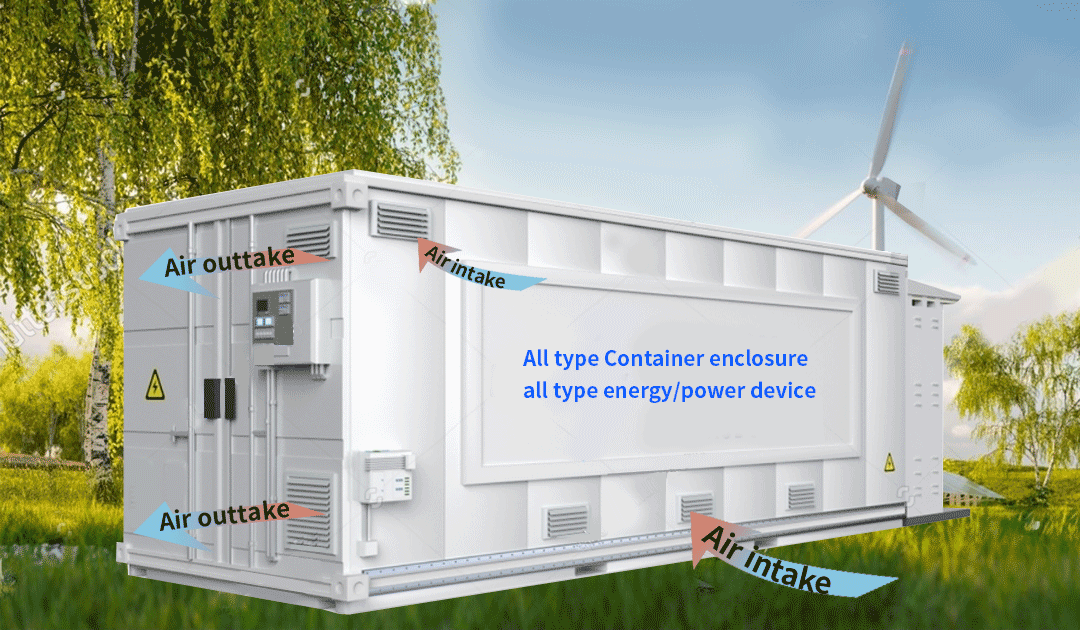

A normally functioning energy cabinet in the outskirts provides daily ventilation and heat dissipation through the cool air around it





If these energy devices are facing harsh environments below where the surrounding air, it is not suitable for ventilation





Longterm dry hot tempature without raing in summer, it is like sauna

The sandstorm that is about to blow over

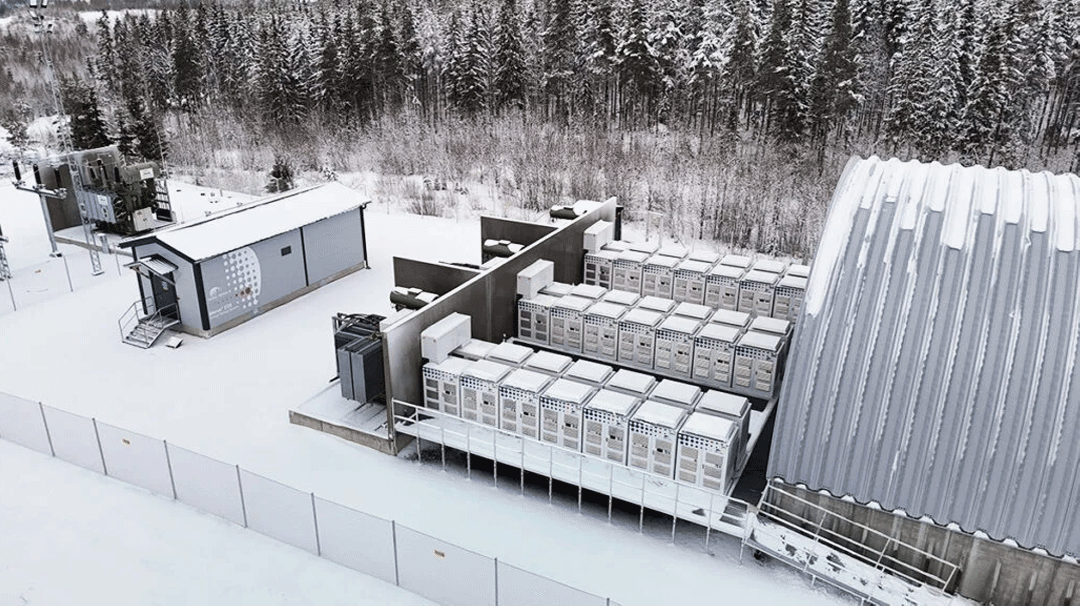

Snow weather in negative 30 degrees



Wet cold moisture weather







The Challenges of Natural Disasters

Natural harsh weather pose significant threats to outdoor energy storage and electrical equipment. sands of sandstorm into vent of enclosure easyly, extreme hot or cold ambient air is not suitable for air cooling to enclosure, foggy moisture  air can easy makes enclosure wet as bathroom. so those ambient air situation must be closed out of the enclosure



We can solve those problems

lectrical ventilation louver I

P54~ IP55 option for you



Open it by your control system



       It suitable to any harsh environment

Open the louvers for air cooling circulation during the nice cool weather

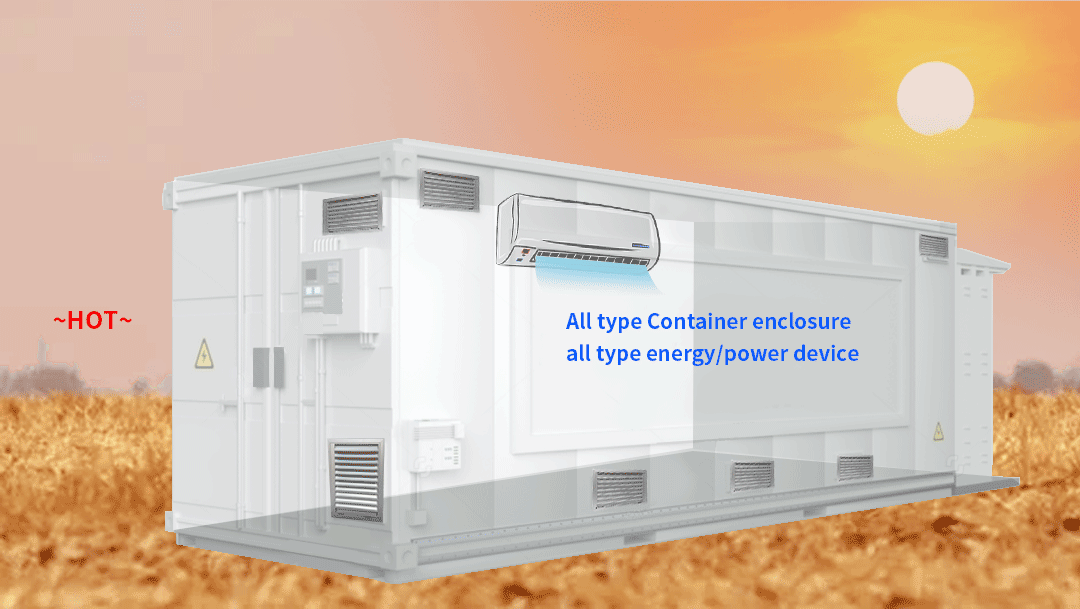

Turn on the air conditioner to cooling mode and close all louvers in extreme hot weather, keep cool inside the enclosure



Turn on the air conditioner to warming mode and close all louvers in extreme cold weather, keep cool inside the enclosure

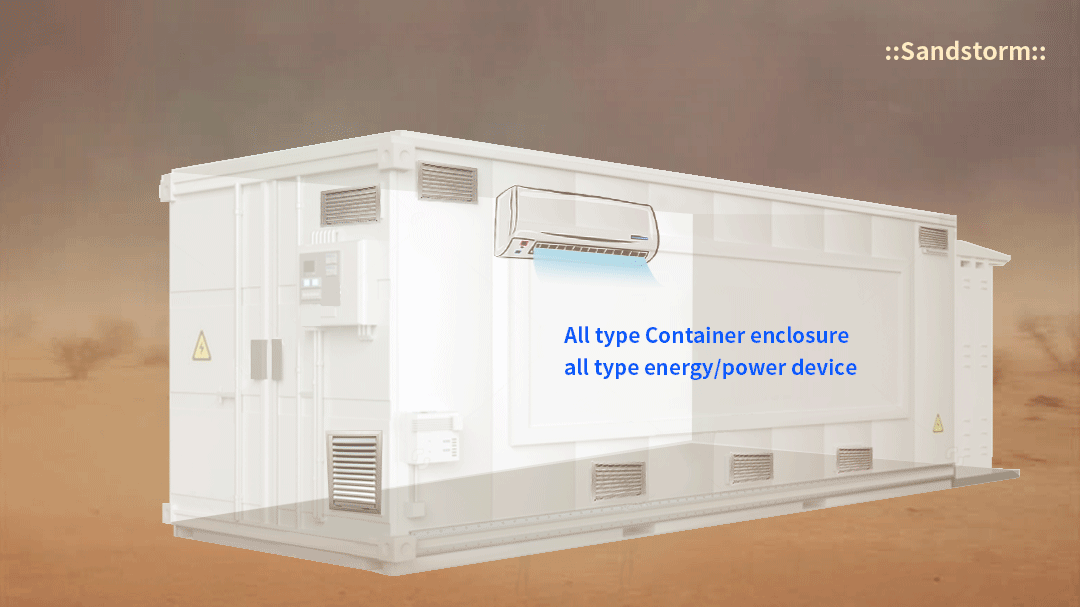

Turn on the air conditioner to cooling mode and close all louvers, block sands out of enclosure

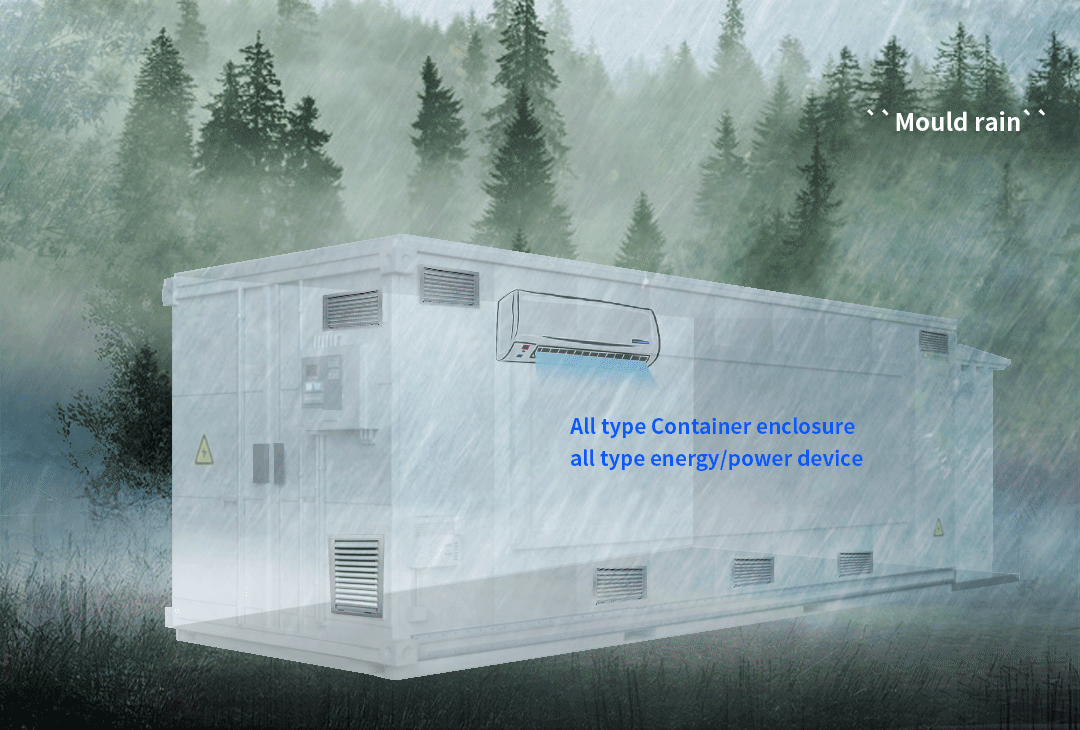

Turn on the air conditioner to dehumidification mode and close all louvers in mould rain weather, keep dry inside the enclosure

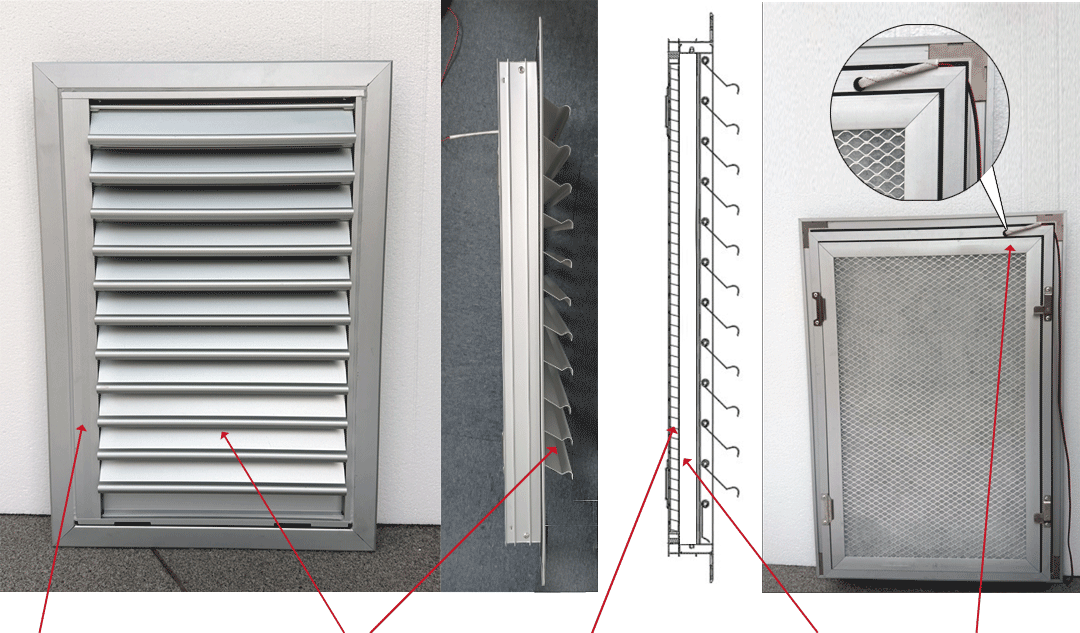

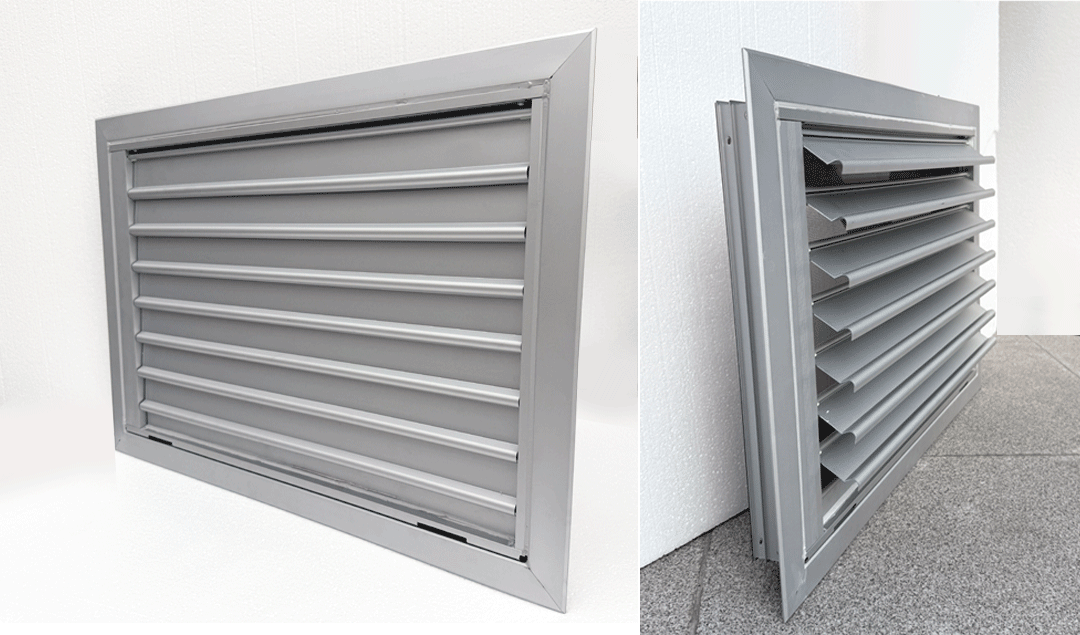

      Product detail and describtion

Power lever for controll vanes

External waterproof vanes open 45° or 90° version option

Back parts option of dust filter/ insect barrier

Inside space for add IPx3/x4 vanes

Connective wire









	Waterproof vanes option for inside space of louver
	Type of vanes(inside)	Attainable protection level in different angle	Attainable ventilated ratio
	No vanes inside	IP55 (close) IP53 (45°) IP52 (90°)	90%
	Z shaped vanes	IP55 (close) IP54 (45°) IP53 (90°)	55%
	N shaped vanes	IP55 (close) IP55 (45°) IP54 (90°)	40%
	M shaped vanes	IP55 (close) IP55 (45°) IP54 (90°)	35%











      Accessory option equip with louver

Paired with filter mesh assembly IP5X/IP6X material

Paired with insect mesh assembly stainless steel mesh

Paired with fan board for exhaust vent







      Upgrade version is available

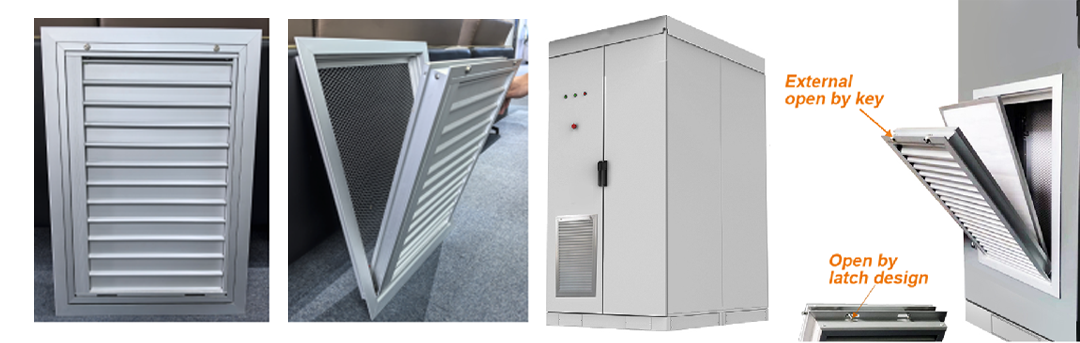

Convenient maintenance

• Open by key or latch blug option
• Open the louver externaly directly
• Replace the filter cotton easily
• Finger protection design is available



       Here is catalogue download



Detail of engine & product testing videos are needed Please contact us to obtain We can customize explosion-proof product solutions for you

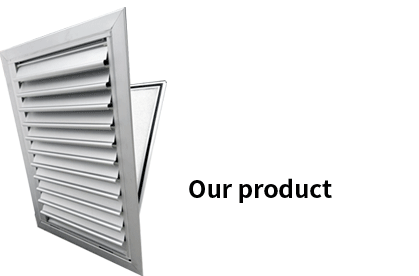

      Product advantage

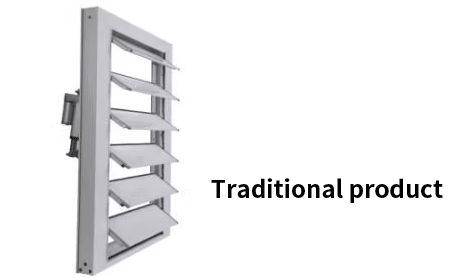

Functional gap	waterproof and dust filtering functions Achieve multiple functional combinations	No waterproo and dustproof Only open or close
Protection gap	The vanes can reach IPx4 and IPx5 levels in both open and closed states	There is no protection and it is at IPX0 level if the louver is open
Cost gap	Under the same area size, the cost is only 70% ~80% of traditional electric louver	Under the same area size, the cost is 20% to 30% higher than our product

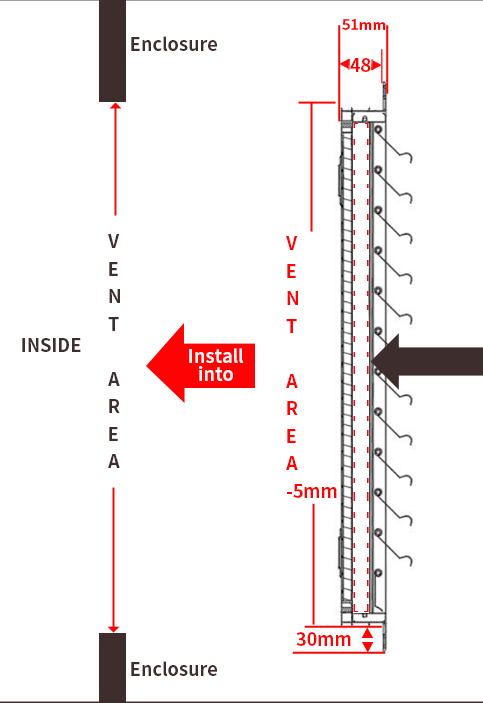

Installation method	it can be directly fixed to the enclosure without any additional installation accessories	Additional installation accessories need to be customized for matching installation
Size order require	Any size can be made without any restrictions, accurate to millimeters	The height dimension must be an integer multiple of the vane and cannot be made in any centimeter
Scope of application	Suitable to many application, renewable enery, energy supply equipment, power distribution equipment and architecture	Only suitable to architecture









There are more other protection level louvers for differenct application

click to see more

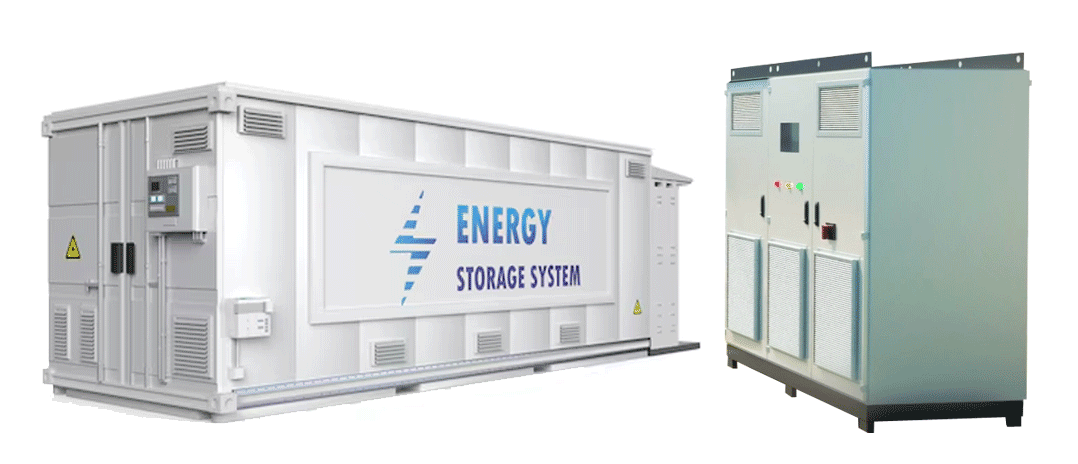

↑ For all type energy ESS/ PCS/UPS/CHP/ hydrogen container/cabinet ↑	↑ For all electric vehicle charging pile/cabinet ↑
↑ For fabricated substation/ power distribution/switch gear ↑	↑ For architecture structure ↑
↑ For diesel generator/ genset/ combine heat & power ↑	↑ For mobile energy  ↑









      How to serve you:

The key is your vent size of inlet or outlet, and your requirement



Or click here to download the fill form about your requirement   (please click)





Leave your comment about your ventilation idea or question we might discuss the answer together (click)
