Have you encountered any of the following issues with your outdoor energy/power equipment





Outdoor containers and cabinets devices always face those natural Disasters
Rainstorm	Sand storm
Plague of insects	Moisture foggy



The Challenges of Natural Disasters

Natural disasters pose significant threats to outdoor energy storage and electrical equipment. with high winds and flying debris into vent of enclosure by typhoon and exposing sensitive components to water ingress.  Prolonged rainfall and flooding can lead to water intrusion, posing the risk of electrical shorts, fires, and accelerated corrosion. Sandstorms, common in arid regions, can easy into machine from vent,  and deposit fine particles that impair ventilation systems and cause overheating

The equipment is facing the trouble of being damaged and difficult to repair at any time





Shipping container and cabinet enclosure needs the air cooling circulation

Air circulation consists of an outlet and inlet.when air passes over or through the vent . The vacuum this creates pulls stale, heat and moist air out of the enclosure and then fresh, ambient air is pulled through the inlet vent completing the multiple, daily air exchanges necessary to prevent moisture buildup and mitigate excessive heat for shipping container. Those shipping containers use for power storage or power generator needs the serious ventilation system for heat dissipation,

one ESS container includes multi processor devices like battery system, liquid cooling system,switch gear and conversion system, it constantly generates numbers kmw of energy, accompanied by the high temperature risk generated by its operation, that would not be more risk to those machines if keep the good ventilation system





We can solve these problems

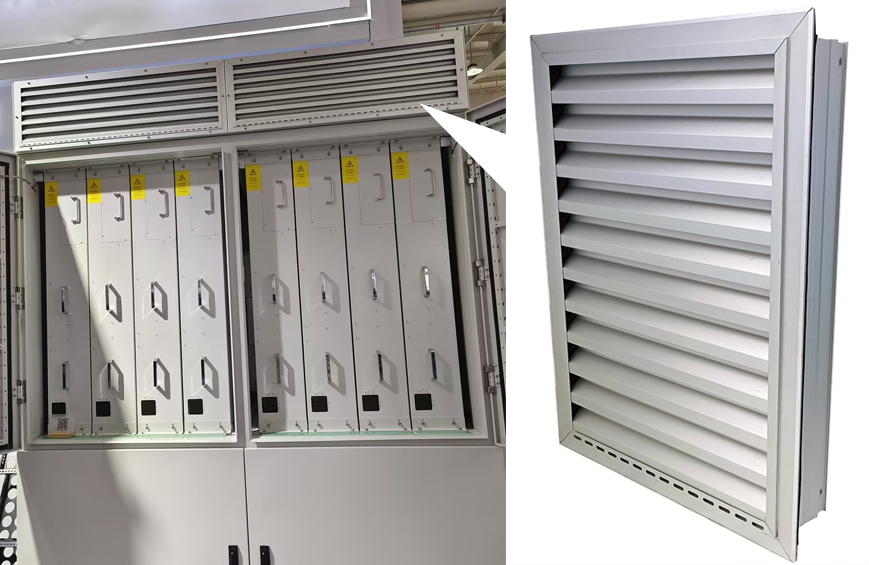

Option 1: IPX5 ventilation ratio 65% LY shaped vanes louver (external installation)



Option 2: IPX5 ventilation ratio 65% LY shaped vanes louver (inside installation)



       Waterproof and drainage  performance

Good waterproof performance by the IPX5 vanes design and waist shaped drainage holes

Flange back integrated sealing rubber	Waist shape drainage holes in below







     Dust prevention in ventilation

The louver can be paired with cotton filter and insect net integration

Selection of fixed or removable type barrier net



Selection of disposable or reusable filter cotton materials

We have selection of IP55 or IP65

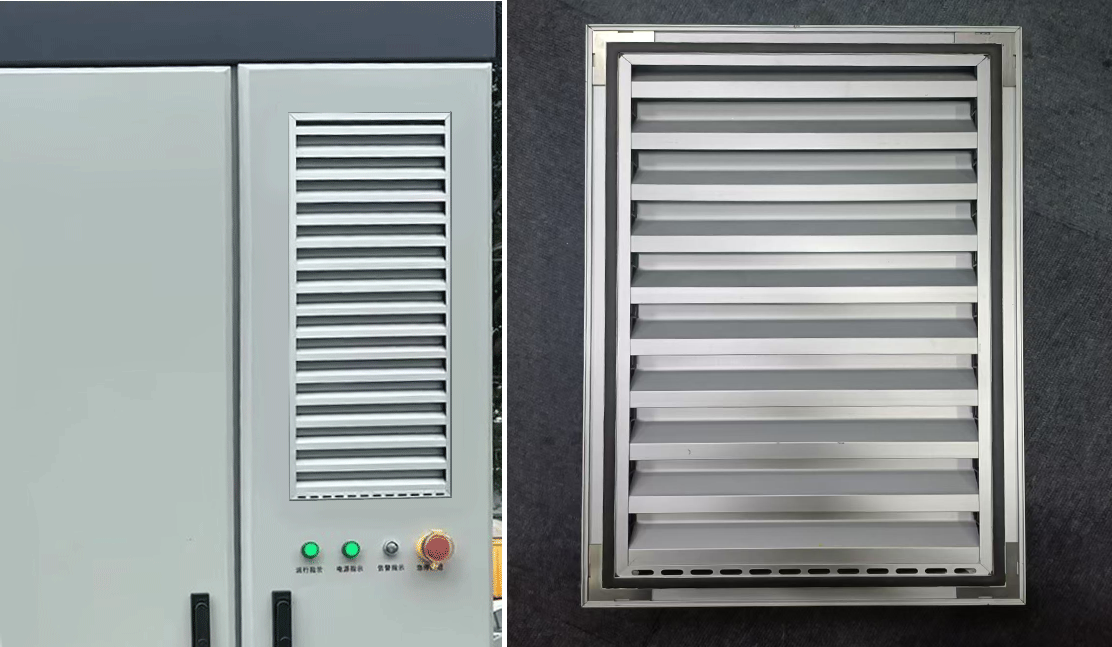

    2 version louvers you can choose for maintenance method

Version 1: Fixed type louver , only way get in the enclosure for change the filter	Version 2: Upgrade type, direct open the louver without open the enclosure



Also for outlet vent, design the fan blower louver according to your fan size

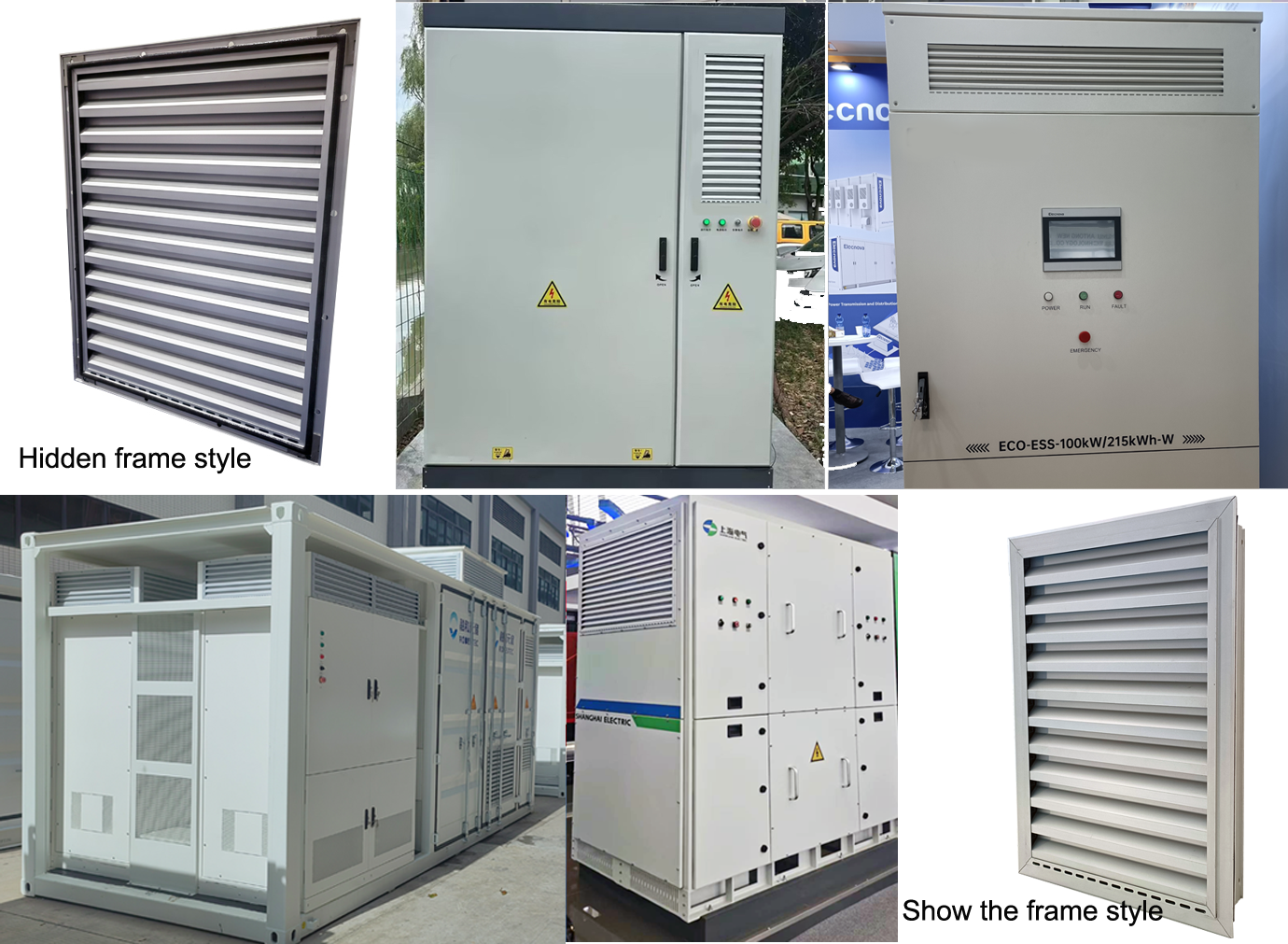

Client case reference









There are more other protection level louvers for differenct application

click to see more









      How to serve you:

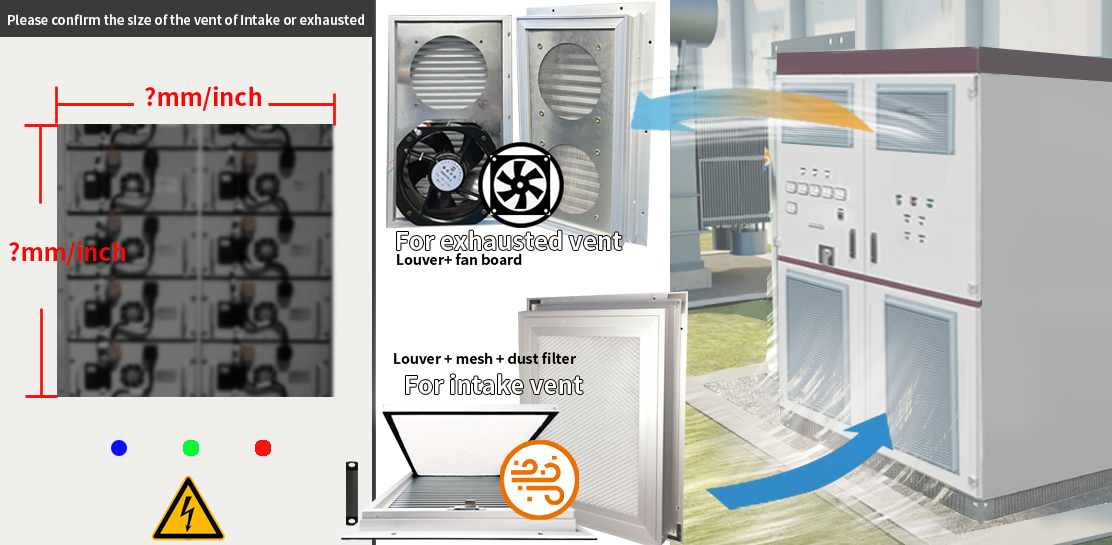

The key is your vent size of inlet or outlet, and your requirement



Or click here to download the fill form about your requirement   (please click)

Leave your comment about your ventilation idea or question we might discuss the answer together (click)
