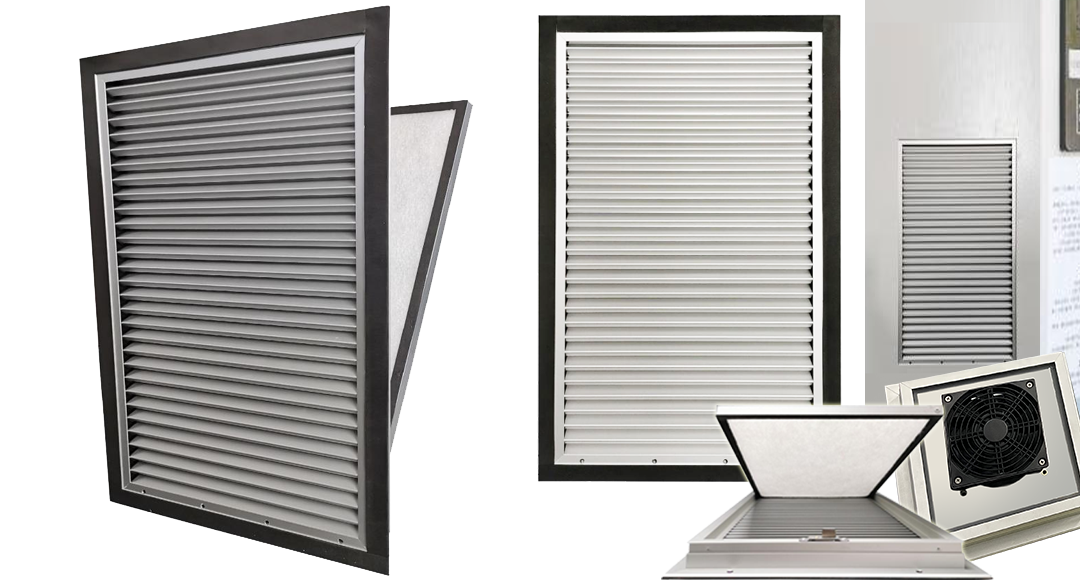

IP54/ IP64 ventilation ration 35% thin filter louver

HX1M-IT30AB


Classification:

EV charging equipment (click)

Main Material: Aluminum Alloy
Color: Natural Anodizing
Blade Space(mm): 13
Thickness of Fins(mm): 0.8
Thickness of Filter net(mm): 12
Total Thickness(mm):30
Protection Grade: IP54
Effective ventilationrate:35%

Key word:

internal setup

Product Details





 Have you encountered any of the following issues with your project equipment

DC electric vehicle charging station



The airflow of rainstorm take into the no protection equipment, resulting in ponding damage and power failure of the cabinet.  it brings the high maintenance costs. Moisture condensation cause discharge orcorrosion to the machine





Those power equipment will face those harsh condition influence below
Rainstorm Sand storm
Plague of insects Moisture foggy

The Challenges of Natural Disasters

Natural disasters pose significant threats to outdoor energy storage and electrical equipment. Typhoons, for instance, can cause widespread damage to infrastructure, with high winds and flyi ng debris damaging protective enclosures and exposing sensitive components to water ingress. Eart hquakes, on the other hand, can shift foundations,  disrupting electrical connections and causing physical damage to devices. Prolonged rainfall and flooding can lead to water intrusion, posing the risk of electrical shorts, fires, and accelerated corrosion. Sandstorms, common in arid regions, can abrade protective coatings, infiltrate enclosures,  and deposit fine particles that impair ventilation systems and cause overheating



The equipment is facing the trouble of being damaged and difficult to repair at any time

Choose the protection level and ventilation ratio you need

Theorem: The higher the protection level comes the low ventilation ratio



We can solve these problems



Product number: HX1M-IT30AB, Product thickness 30/40mm

Protection level: IP54-IP64, ventilation ratio 35%

      Dust prevention in ventilation

Quality dust proof and insects blocked performance by the metal net with cotton filter

Selection of fixed or removable type barrier net

Selection of disposable or reusable filter cotton materials

We have selection of IP5X or IP6X



      Waterproof and drainage

360 degree waterproof performance by the IPX4 vanes design and waist shaped drainage holes

RAIN PROOF by the vanes structure design

The vanes shape deisgn is M-shaped good rain block performance

Waist shape drainage holes in below can be smooth drainage

Flange back integrated sealing strip can be good sealing stallation



          2 Presentation methods and installation method

Show the frame style Hidden the frame style
Back installation view Step 1: Weld the screws on the enclosure of inside the cabinet first according to our CAD design file provide  Step 2: Mount the louver on the enclousure by screw nuts





Also we can design the fan blower louver according to your fan size for the exhausted vent

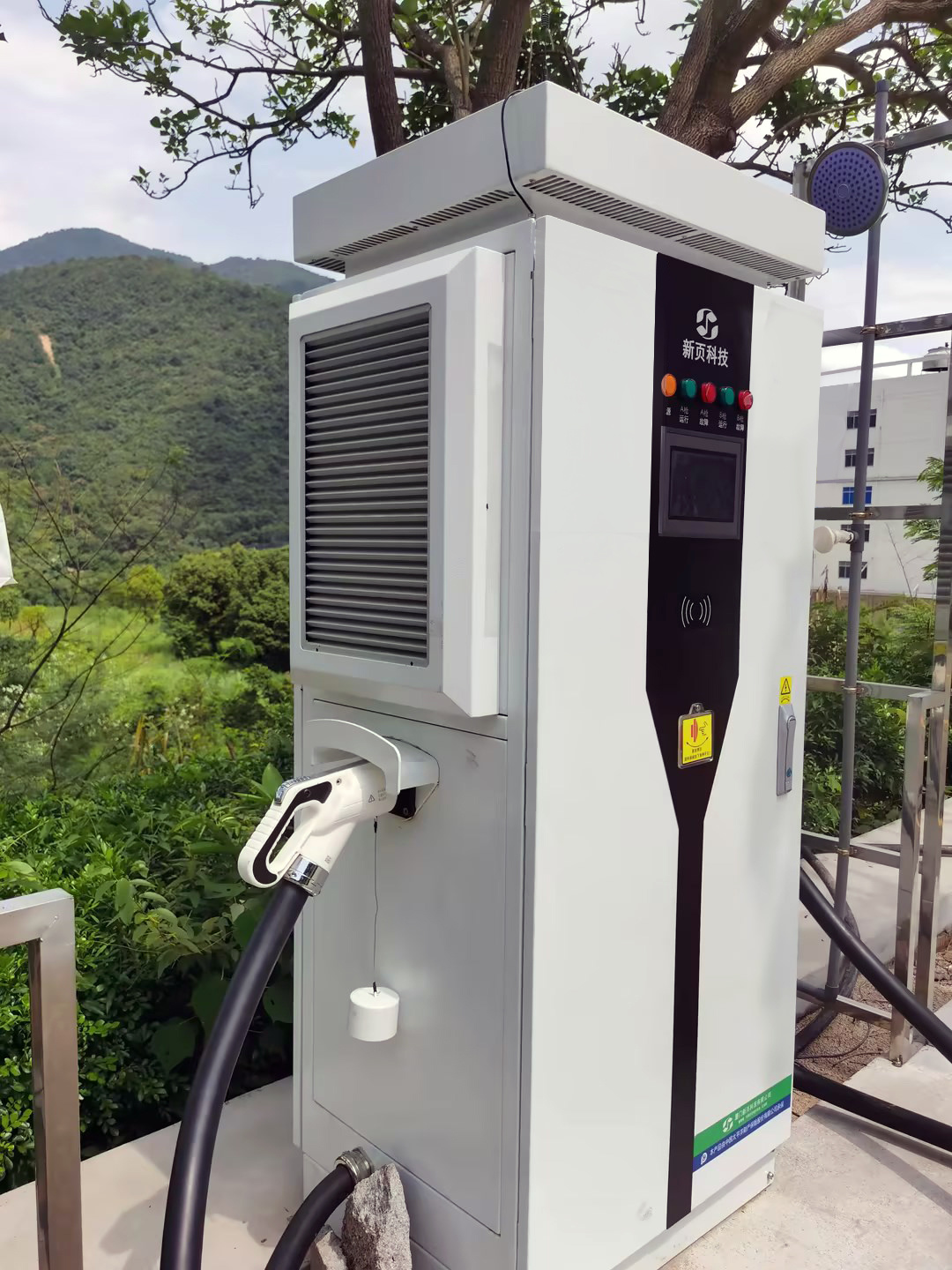

     Product application demonstration
