Air cooling ventilation for electric vehicle supply equipment

Physical components, such as internal electronics, controllers, cord, EV-compatible plug and telecommunications devices to share data and enable network connections.Software applications to manage the charging, billing, driver access, and administration of an EVSE program.On-going service to maintain physical and software components as well as provide customer service to both EVSE owners and their driver constituents., such as extra small size of BESS + power output system in cabinet, it constantly generates thousands watt of energy, accompanied by the high temperature risk generated by its operation. Speical case for DC EVSE, The limited room in such small case, the inlet and outlet vent of most EV chargers are in the bottom. it costs a risk of debris and rainwater entering the machine.

DC electric vehicle charging station

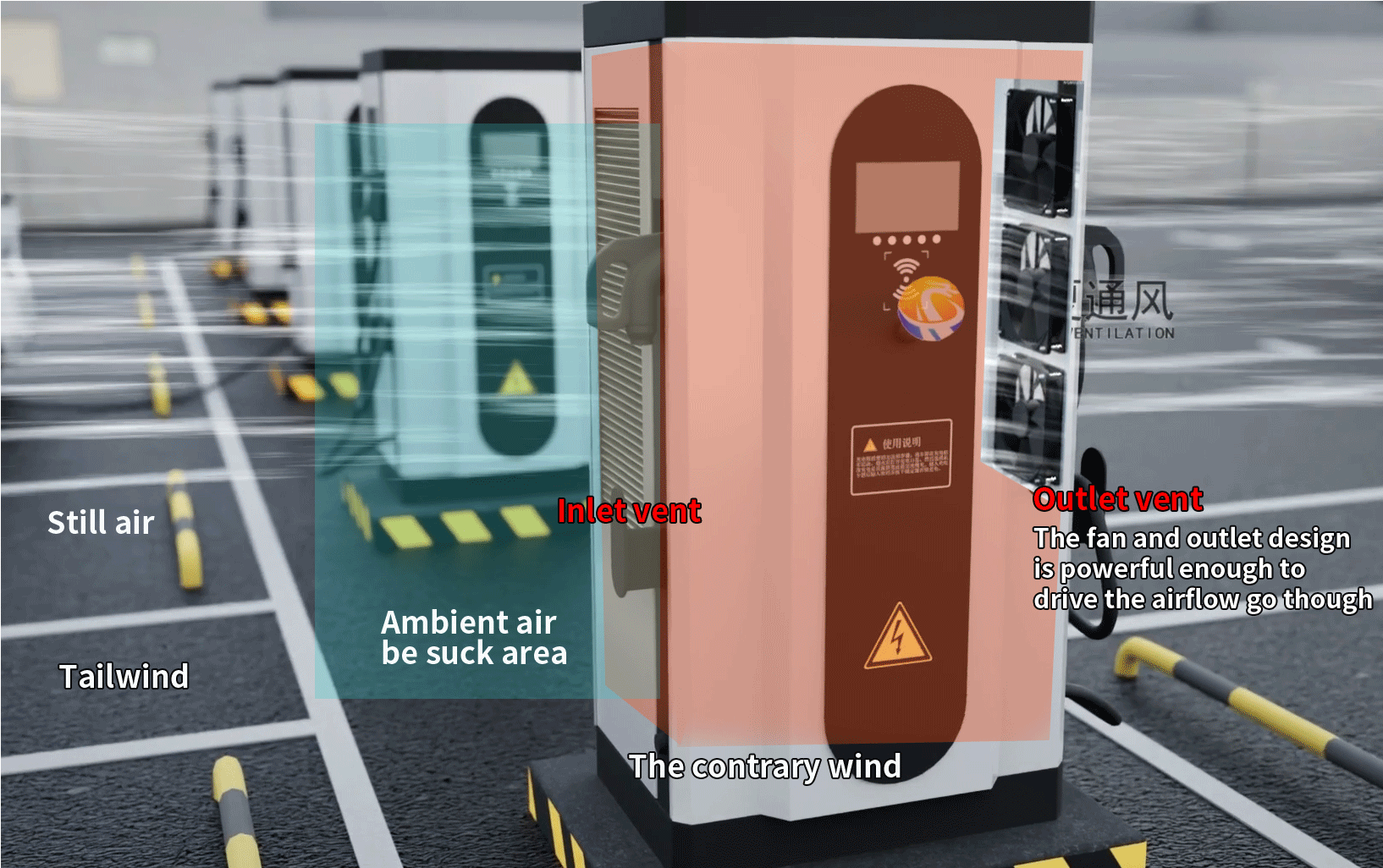

EV charging station needs the air cooling circulation

Air circulation consists of an outlet and inlet.when air passes over or through the vent . The vacuum this creates pulls stale, heat out of the enclosure and then fresh, ambient air is pulled through the inlet vent completing the multiple, daily air exchanges  necessary to prevent moisture buildup and mitigate excessive heat for EVSE



Choose the protection level and ventilation ratio you need

Theorem: The higher the protection level comes the low ventilation ratio



       Choose your IP protection level:

IPX3 Moderate rain Water within 60° of vertical surface	IPX4 Heavy rain Water within 360° coming	IPX5 Rainstorm Block direct water column



IP4X Insects or sands Prevent solid objects larger than 1mm from enterting	IP5XDust Prevent dust accumulation	IP6XDust Completely prevent dust from entering







We specialize in producing customized ventilation louvers with various protection levels and ventilation requirements

We provide IPX3 to IPX5 vanes structure design option

Basic on IP5x level and it can upgrade to IP6X



      Here is the vent louver for shipping container type

11Z Series IP53 Ventilation ratio 60% Thickness 30mm	1M  Series IP54 Ventilation ratio 50% Thickness 30mm	02S Series IP55 Ventilation ratio 45% Thickness 40mm





For outlet vent, design the fan blower louver according to your fan size

      Upgrade your maintenance method?



Basic version, fixed type inside, need to open the enclosure	Upgrade version, direct open the louver for filter maintenance







Client case reference





There are other applications or level options available,

click to see more
