Shipping container needs the air cooling circulation

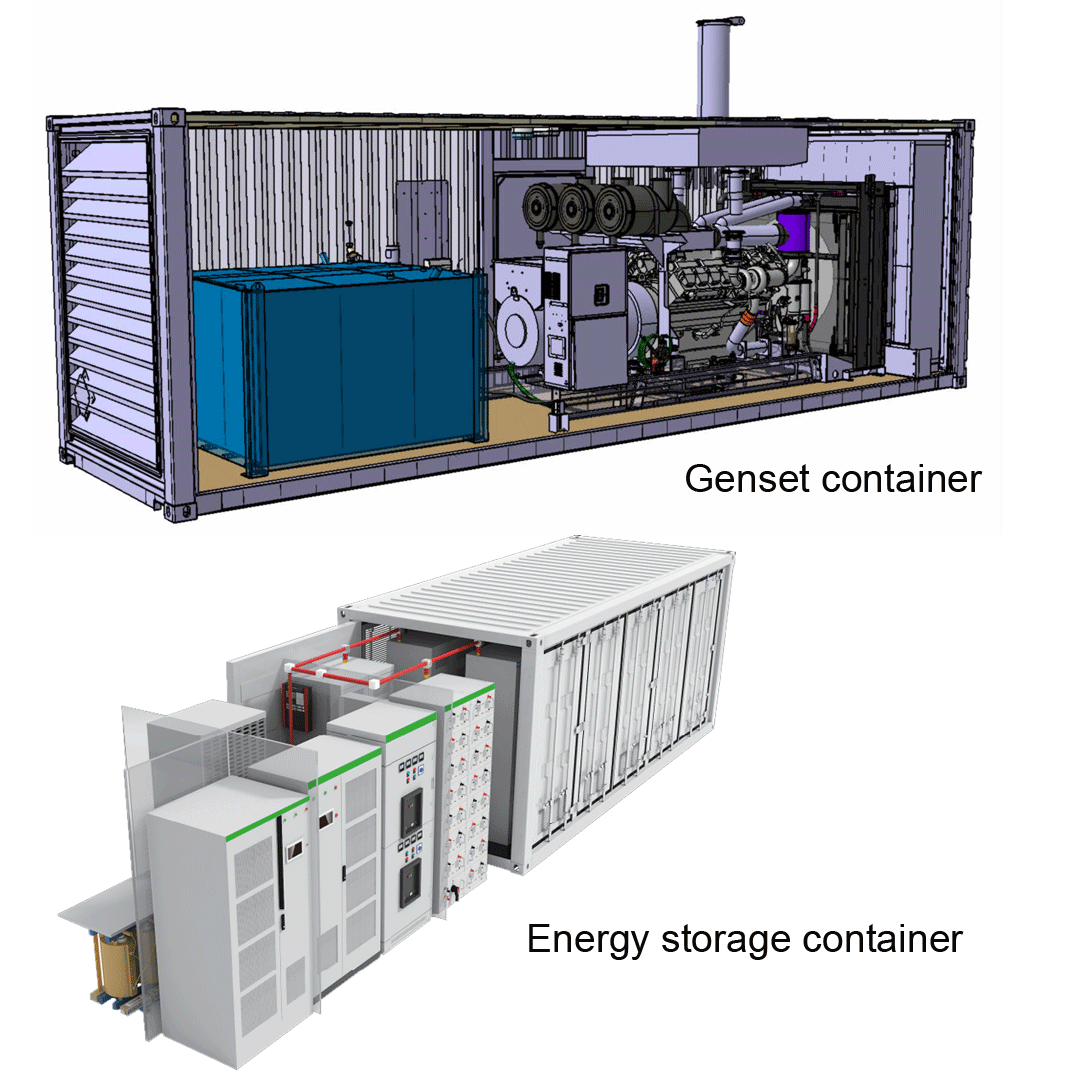

Air circulation consists of an outlet and inlet.when air passes over or through the vent . The vacuum this creates pulls stale, heat and moist air out of the enclosure and then fresh, ambient air is pulled through the inlet vent completing the multiple, daily air exchanges necessary to prevent moisture buildup and mitigate excessive heat for shipping container. Those shipping containers use for power storage or power generator needs the serious ventilation system for heat dissipation, one ESS container includes multi processor devices like battery system, liquid cooling system,switch gear and conversion system, it constantly generates numbers kmw of energy, accompanied by the high temperature risk generated by its operation, that would not be more risk to those machines if keep the good ventilation system





Choose the protection level and ventilation ratio you need

Theorem: The higher the protection level comes the low ventilation ratio





       Choose your IP protection level:

IPX3 Moderate rain Water within 60° of vertical surface	IPX4 Heavy rain Water within 360° coming	IPX5 Rainstorm Block direct water column



IP4X Insects or sands Prevent solid objects larger than 1mm from enterting	IP5XDust Prevent dust accumulation	IP6XDust Completely prevent dust from entering







We specialize in producing customized ventilation louvers with various protection levels and ventilation requirements

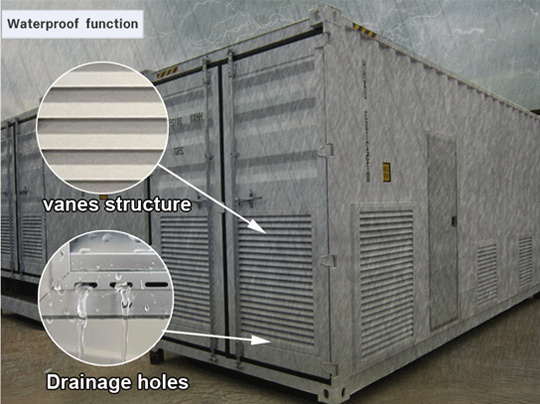

Different waterproof level of IPX3-5 vanes design and waist shaped drainage holes,The louver can be paired with cotton filter and insect net integration, we have selection of IP5x or IP6x

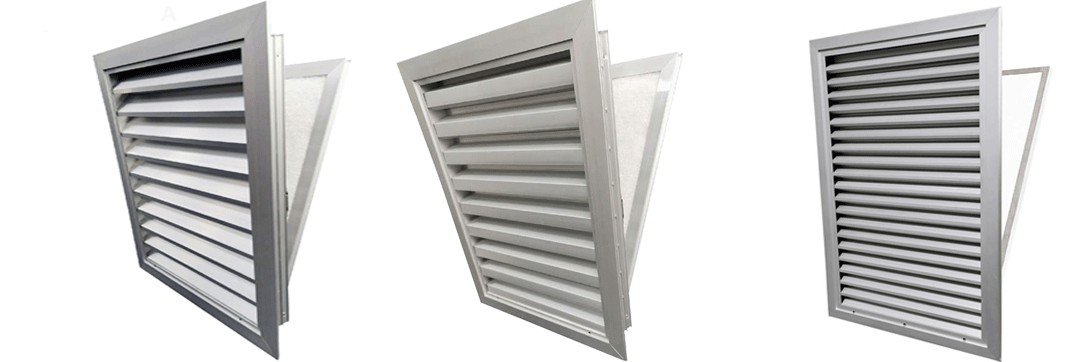

      Here is the vent louver for shipping container type

1Z Series IP53 Ventilation ratio 60% Thickness 50mm	1S Series IP54 Ventilation ratio 50% Thickness 50mm	2S Series IP55 Ventilation ratio 45% Thickness 50mm





Also for outlet vent, design the fan blower louver according to your fan size



      2 version louvers you can choose for maintenance method

Version 1: Fixed type louver , only way get in the enclosure for change the filter	Version 2: Upgrade type, direct open the louver without open the enclosure

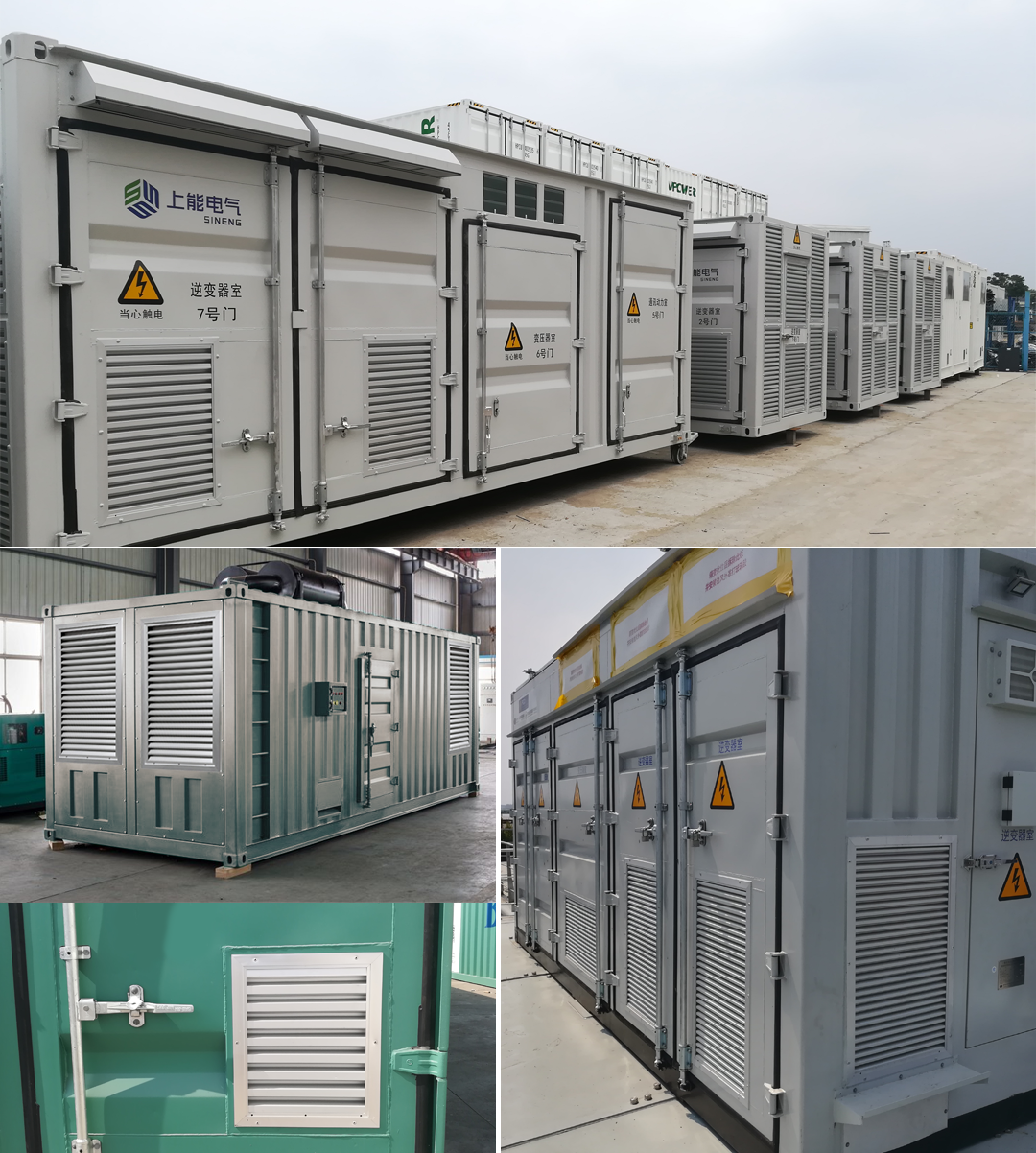

Client case reference













There are more other protection level louvers for differenct application

click to see more



      How to serve you:

The key is your vent size of inlet or outlet, and your requirement, we can customized



Or click here to download the fill form about your requirement   (please click)





Leave your comment about your ventilation idea or question we might discuss the answer together (click)
